Manual:Basic VLAN switching

From CableFree RadioOS
Jump to navigation Jump to search

Applies to RadioOS: v6.41 +

Introduction

Many CableFree devices come with a built-in switch chips that usually have an option to do VLAN switching on a hardware level, this means that you can achieve wire-speed performance using VLANs if a proper configuration method is used. The configuration method changes across different models, this guide will focus on setting up a basic trunk/access port setup with a management port from the trunk port using different devices with the right configuration to achieve best performance and to fully utilize the available hardware components.

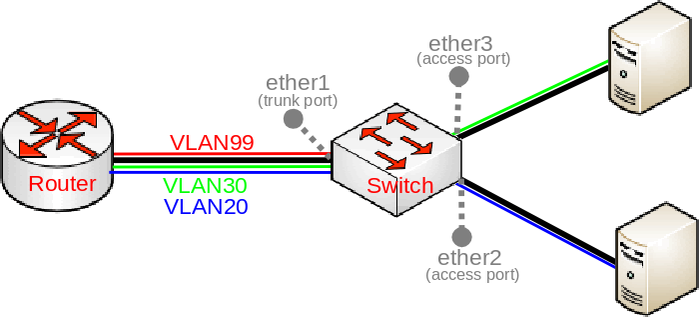

Alt text
Basic VLAN switching

CF-SW-xx series switches

/interface bridge
add name=bridge1
/interface bridge port
add bridge=bridge1 interface=ether1 hw=yes
add bridge=bridge1 interface=ether2 hw=yes pvid=20
add bridge=bridge1 interface=ether3 hw=yes pvid=30
/interface bridge vlan
add bridge=bridge1 tagged=ether1 untagged=ether2 vlan-ids=20
add bridge=bridge1 tagged=ether1 untagged=ether3 vlan-ids=30
add bridge=bridge1 tagged=ether1,bridge1 vlan-ids=99
/interface vlan
add interface=bridge1 vlan-id=99 name=MGMT
/ip address
add address=192.168.99.1/24 interface=MGMT
/interface bridge
set bridge1 vlan-filtering=yes

More detailed examples can be found here.

CF-SW-1xx/-2xx series switches

/interface bridge
add name=bridge1
/interface bridge port
add bridge=bridge1 interface=ether1 hw=yes
add bridge=bridge1 interface=ether2 hw=yes
add bridge=bridge1 interface=ether3 hw=yes
/interface ethernet switch ingress-vlan-translation
add ports=ether2 customer-vid=0 new-customer-vid=20 sa-learning=yes
add ports=ether3 customer-vid=0 new-customer-vid=30 sa-learning=yes
/interface ethernet switch egress-vlan-tag
add tagged-ports=ether1 vlan-id=20
add tagged-ports=ether1 vlan-id=30
add tagged-ports=ether1,switch1-cpu vlan-id=99
/interface ethernet switch vlan
add ports=ether1,ether2 vlan-id=20 learn=yes
add ports=ether1,ether3 vlan-id=30 learn=yes
add ports=ether1,switch1-cpu vlan-id=99 learn=yes
/interface vlan
add interface=bridge1 vlan-id=99 name=MGMT
/ip address
add address=192.168.99.1/24 interface=MGMT
/interface ethernet switch
set drop-if-invalid-or-src-port-not-member-of-vlan-on-ports=ether1,ether2,ether3

Other devices with built-in switch chip


Warning: Not all devices with a switch chip are capable of VLAN switching on a hardware level, check the supported features for each switch chip, the compatibility table can be found Here. If a device has VLAN table support, then it is capable of VLAN switching using the built-in switch chip. You can check the device's switch chip either in the provided link or by using /interface ethernet switch print


/interface bridge
add name=bridge1
/interface bridge port
add bridge=bridge1 interface=ether1 hw=yes
add bridge=bridge1 interface=ether2 hw=yes
add bridge=bridge1 interface=ether3 hw=yes
/interface ethernet switch vlan
add ports=ether1,ether2 switch=switch1 vlan-id=20
add ports=ether1,ether3 switch=switch1 vlan-id=30
add ports=ether1,switch1-cpu switch=switch1 vlan-id=99
/interface vlan
add interface=bridge1 vlan-id=99 name=MGMT
/ip address
add address=192.168.99.1/24 interface=MGMT
/interface ethernet switch port
set ether1 vlan-mode=secure vlan-header=add-if-missing
set ether2 vlan-mode=secure vlan-header=always-strip default-vlan-id=20
set ether3 vlan-mode=secure vlan-header=always-strip default-vlan-id=30
set switch1-cpu vlan-header=leave-as-is vlan-mode=secure

More detailed examples can be found here.


Note: This type of configuration should be used on some CableFree devices.



Note: By default, the bridge interface is configured with protocol-mode set to rstp. For some devices, this can disable hardware offloading because specific switch chips do not support this feature. See the manual section with supported features.



Note: For devices that have multiple switch chips, each switch chip is only able to switch VLAN traffic between ports that are on the same switch chip, VLAN filtering will not work on a hardware level between ports that are on different switch chips, this means you should not add all ports to a single bridge if you are intending to use VLAN filtering using the switch chip, VLANs between switch chips will not get filtered. You can connect a single cable between both switch chips to work around this hardware limitation, another option is to use Bridge VLAN Filtering, but it disables hardware offloading (and lowers the total throughput).


Other devices without a built-in switch chip

It is possible to do VLAN filtering using the CPU, there are multiple ways to do it, but it is highly recommended by using bridge VLAN filtering.

/interface bridge
add name=bridge1
/interface bridge port
add bridge=bridge1 interface=ether1 hw=no
add bridge=bridge1 interface=ether2 hw=no pvid=20
add bridge=bridge1 interface=ether3 hw=no pvid=30
/interface bridge vlan
add bridge=bridge1 tagged=ether1 untagged=ether2 vlan-ids=20
add bridge=bridge1 tagged=ether1 untagged=ether3 vlan-ids=30
add bridge=bridge1 tagged=ether1,bridge1 vlan-ids=99
/interface vlan
add interface=bridge1 vlan-id=99 name=MGMT
/ip address
add address=192.168.99.1/24 interface=MGMT
/interface bridge
set bridge1 vlan-filtering=yes

More detailed examples can be found here.
