MPLS over PPPoE

Overview

This example shows how to set up MPLS network over PPPoE interfaces.

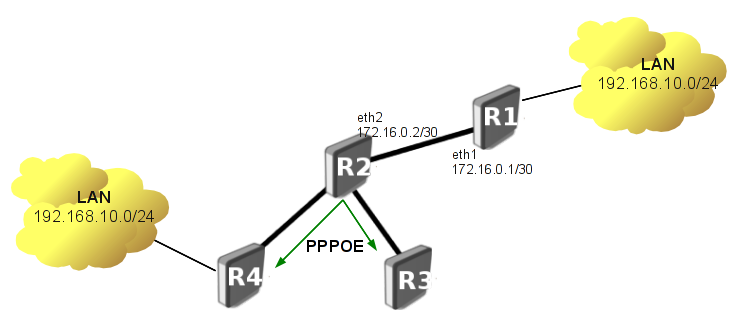

Example network


As you ca see from illustration above, router R2 is pppoe server and routers R3 and R4 are pppoe clients. Our goal is to run MPLS on this network.

When running MPLS over PPPoE or other tunnels you have to deal with MTU issues. Tunnels add more overhead (in our case PPPoE adds 8 more bytes). To be able to forward 1500 byte IP packet without fragmentation we will need interface that supports

1500 (IP frame)
+ 8 (PPPoE header)
+ 4 (MPLS header)
= 1512bytes

From the CableFree device MTU table you can check if CableFree device supports 1512 L2MTU.

Lets say that R2 is RB433 and pppoe clients are connected to ether2. From the table you can see that max supported l2MTU for this interface is 1522.

It means that router will be able to forward packets without fragmentations.


Note: Since v5.0 is added proper support for MPLS over PPP. Now by default MPLS is disabled, to enable it go to
/ppp profile menu and set use-mpls=yes


Configuration

R1

/system identity set name=R1

# add loopback interface
/interface bridge
add name=loopback
/ip address
add address=10.255.255.1/32 interface=loopback
add address=172.16.0.1/30 interface=ether1

#set up ospf
/routing ospf instance
set default redistribute-connected=as-type-1
/routing ospf network
add network=172.16.0.0/30 area=backbone

# set up MPLS/LDP
/mpls interface set 0 mpls-mtu=1512
/mpls ldp
set enabled=yes lsr-id=10.255.255.1 transport-address=10.255.255.1
/mpls ldp interface
add interface=ether1

R2

Note that we have to add static interface for each PPPoE clients, because later on these interfaces will be added to LDP configuration.

/system identity set name=R2

# add loopback interface
/interface bridge
add name=loopback
/ip address
add address=10.255.255.2/32 interface=loopback
add address=172.16.0.2/30 interface=ether1

# set up pppoe
/interface pppoe-server server
add interface=ether2 service-name=mpls max-mru=1500 max-mtu=1500

/ppp secret
add name=mplsR3 service=pppoe remote-address=192.168.0.2 local-address=192.168.0.1
add name=mplsR4 service=pppoe remote-address=192.168.0.3 local-address=192.168.0.1

/interface pppoe-server
add name="mplsR3" user="mplsR3" service="mpls"
add name="mplsR4" user="mplsR4" service="mpls"

#set up ospf
/routing ospf instance
set default redistribute-connected=as-type-1
/routing ospf network
add network=172.16.0.0/30 area=backbone
add network=192.168.0.2/32 area=backbone
add network=192.168.0.3/32 area=backbone

# set up MPLS/LDP
/mpls interface set 0 mpls-mtu=1512
/mpls ldp
set enabled=yes lsr-id=10.255.255.2 transport-address=10.255.255.2
/mpls ldp interface
add interface=ether1
add interface=mplsR3
add interface=mplsR4


R3

/system identity set name=R3

# add loopback interface
/interface bridge
add name=loopback
/ip address
add address=10.255.255.3/32 interface=loopback

# set up pppoe
/interface pppoe-client
add name="mplsR3" max-mtu=1500max-mru=1500 interface=ether2 user="mplsR3" service-name=mpls

#set up ospf
/routing ospf instance
set default redistribute-connected=as-type-1
/routing ospf network
add network=192.168.0.1/32 area=backbone

# set up MPLS/LDP
/mpls interface set 0 mpls-mtu=1512
/mpls ldp
set enabled=yes lsr-id=10.255.255.3 transport-address=10.255.255.3
/mpls ldp interface
add interface=mplsR3

R4

/system identity set name=R4

# add loopback interface
/interface bridge
add name=loopback
/ip address
add address=10.255.255.4/32 interface=loopback

# set up pppoe
/interface pppoe-client
add name="mplsR4" max-mtu=1500 max-mru=1500 interface=ether2 user="mplsR4" service-name=mpls

#set up ospf
/routing ospf instance
set default redistribute-connected=as-type-1
/routing ospf network
add network=192.168.0.1/32 area=backbone

# set up MPLS/LDP
/mpls interface set 0 mpls-mtu=1512
/mpls ldp
set enabled=yes lsr-id=10.255.255.4 transport-address=10.255.255.4
/mpls ldp interface
add interface=mplsR4

Testing

At first make sure pppoe clients are connected successfully

[admin@R2] /ppp active> print
Flags: R - radius
 #   NAME         SERVICE CALLER-ID         ADDRESS         UPTIME   ENCODING
 0   mplsR3       pppoe   00:0C:42:21:F1:EA 192.168.0.2     46m
 1   mplsR4       pppoe   00:0C:42:21:F1:ED 192.168.0.3     46m55s

Check if OSPF is running properly

[admin@R2] /routing ospf neighbor> print
 0 router-id=10.255.255.1 address=172.16.0.1 interface=wlan1 priority=1
   dr-address=172.16.0.2 backup-dr-address=172.16.0.1 state="Full"
   state-changes=5 ls-retransmits=0 ls-requests=0 db-summaries=0
   adjacency=5m19s

 1 router-id=10.255.255.3 address=192.168.0.2 interface=mplsR3 priority=1
   dr-address=0.0.0.0 backup-dr-address=0.0.0.0 state="Full" state-changes=4
   ls-retransmits=0 ls-requests=0 db-summaries=0 adjacency=49m33s

 2 router-id=10.255.255.4 address=192.168.0.3 interface=mplsR4 priority=1
   dr-address=0.0.0.0 backup-dr-address=0.0.0.0 state="Full" state-changes=4
   ls-retransmits=0 ls-requests=0 db-summaries=0 adjacency=50m31s

Ensure LDP is running

[admin@R2] /mpls ldp neighbor> print
Flags: X - disabled, D - dynamic, O - operational, T - sending-targeted-hello,
V - vpls
 #      TRANSPORT       LOCAL-TRANSPORT PEER                       SEN
 0 DO   10.255.255.3    10.255.255.2    10.255.255.3:0             no
 1 DO   10.255.255.4    10.255.255.2    10.255.255.4:0             no
 2 DO   10.255.255.1    10.255.255.2    10.255.255.1:0             no
[admin@R2] /mpls forwarding-table> print
Flags: L - ldp, V - vpls, T - traffic-eng
 #   IN-LABEL      OUT-LABELS  DESTINATION                    I NEXTHOP
 0   expl-null
 1 L 20                        192.168.0.1/32                 m 192.168.0.3
 2 L 21                        10.255.255.4/32                m 192.168.0.3
 3 L 22                        10.255.255.3/32                m 192.168.0.2
 4 L 23                        10.255.255.1/32                w 172.16.0.1
 5 L 24                        192.168.88.0/24                w 172.16.0.1

Now we can check if packet switching is working as expected

[admin@R4] /mpls ldp neighbor> /tool traceroute 10.255.255.1 src-address=10.255.255.4
     ADDRESS                                    STATUS
   1     192.168.0.1 13ms 19ms 143ms
                      mpls-label=23
   2    10.255.255.1 38ms 15ms 14ms

VPLS over PPPoE

Overview

This example extends previous setup by connecting two local networks using VPLS tunnel

Example network
