Products:  Microwave Radio Links

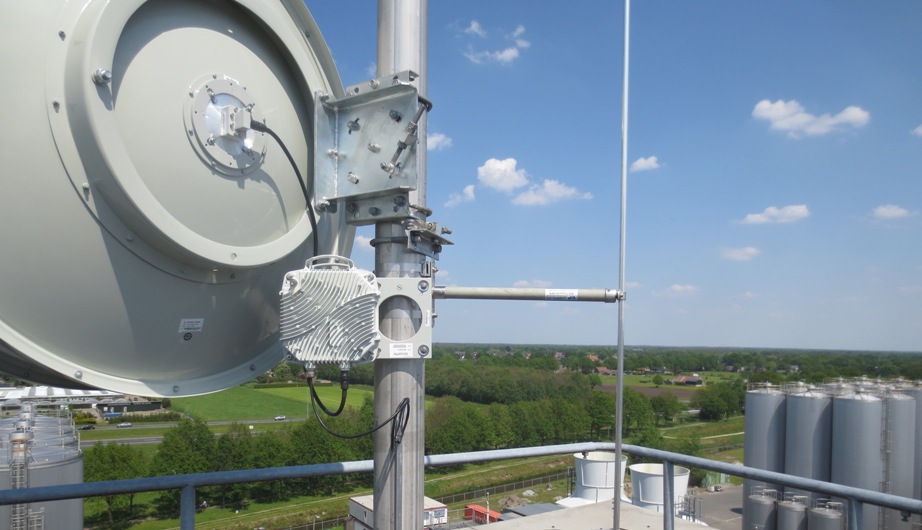

CableFree FOR3 Microwave Link
CableFree FOR3 Microwave Link

CableFree Licensed Microwave Links offer long distance, high capacity and dedicated bandwidth.

The CableFree range of Microwave links include Full Outdoor (FOR3, Diamond), Full Indoor (LHR), Split Mount (HCR, LCR, MMR) and Broadcast (ASI) links to meet varied customer requirements for metro scale and national scale microwave networks.  CableFree Microwave links are are available in licensed bands (4-42GHz) as well as unlicensed 5, 17, 24GHz.

CableFree High Performance Licensed Microwave Radios offer up to 440 Mbps and 880 Mbps Full Duplex payload (1.6Gbps aggregate capacity) and higher up to 3Gbps or more, with a software-selectable mix of SDH, PDH and IP/Ethernet traffic  in 4-42GHz licensed frequency bands.  Using suitable antennas and sites, ultra-long-distance links exceeding 100km can be achieved.



CableFree Diamond Full Outdoor Microwave
CableFree Diamond Full Outdoor Microwave

Microwave System Overview:

  • High performance Software-Defined Radio Links
  • Compact, flexible split Indoor/Outdoor and All-Outdoor configurations
  • Spectrally efficient, software-defined Radio modem
  • Powerful Forward Error Correction (FEC)
  • Adaptive Coding and Modulation (ACM) and Transmit Power Control (TPC)
  • Single-ODU capacity of 1Gbps, Dual ODU 2Gbps Full Duplex
  • Flexible mix of SDH, PDH and IP/Ethernet payload
  • Gigabit Ethernet networks can be connected with over 1Gbps payload
  • ODU options cover all common bands from 4-42GHz
  • Range over 100km possible depending on frequency and location
  • 1+0, 1+1, 2+0, 4+0, N+0, Ring Star and Mesh configurations
  • Choice of antenna options from 30cm up to 3m or more
  • Fully manageable using HTTP, CLI, Telnet, SNMP interfaces
  • Ruggedised telecom-grade solution

CableFree Licensed Radio links come in several versions with Full-Outdoor, Modular and Low Cost platforms to suit all network needs.
All CableFree Wireless solutions are ruggedised and proven in harsh climates with references worldwide.

Applications

CableFree Microwave Links are used in 4G/LTE and 3G Cellular Networks, Telecoms, Internet Service Provider (ISP, WISP), Government, Corporate and CCTV network applications

CableFree Product Range

CableFree Full-Outdoor  Radio
 PDF Datasheet   FOR3: 5-24GHz Full Outdoor Radio with additional carrier-related features, including Licensed and Unlicensed Frequency Bands and supporting 1024QAM Modulation

CableFree Diamond Dual Core XPIC Radio
 PDF Datasheet   CableFree Diamond: 17-26GHz Full Outdoor Radio with XPIC, 2048QAM and advanced  features

CableFree High Capacity Radio
HCR: 4-42GHz Advanced Split-Mount Radio with 1024QAM and XPIC
PDF Datasheet  HCR: 4-42GHz Split-Mount Radio
New Product Release with 1024QAM and XPIC integrated dual modems

CableFree Modular Microwave Radio
 PDF Datasheet  MMR: 4-42GHz Split-Mount Radio

CableFree Low Cost Radio
 PDF Datasheet  LCR: 4-42GHz Split-Mount Radio

CableFree Long Haul Radio

Please Contact Us   New Product Release!

CableFree Broadcast ASI Radio

PDF Datasheet   New Product Release!

CableFree Microwave Antennas from 4 to 42GHz
A Full Range of Antennas available for Point to Point Links
PDF Datasheet

Accessories for CableFree Radios

Please use Surge Suppression when installing CableFree Radios where appropriate.  Both Ethernet (POE) and RF (0-6GHz, with DC passthrough) Surge Arresters are available for various different types of installations.  Always ensure safety of personnel as well as equipment when installing CableFree Wireless solutions.  If in doubt, consult a qualified electrician.

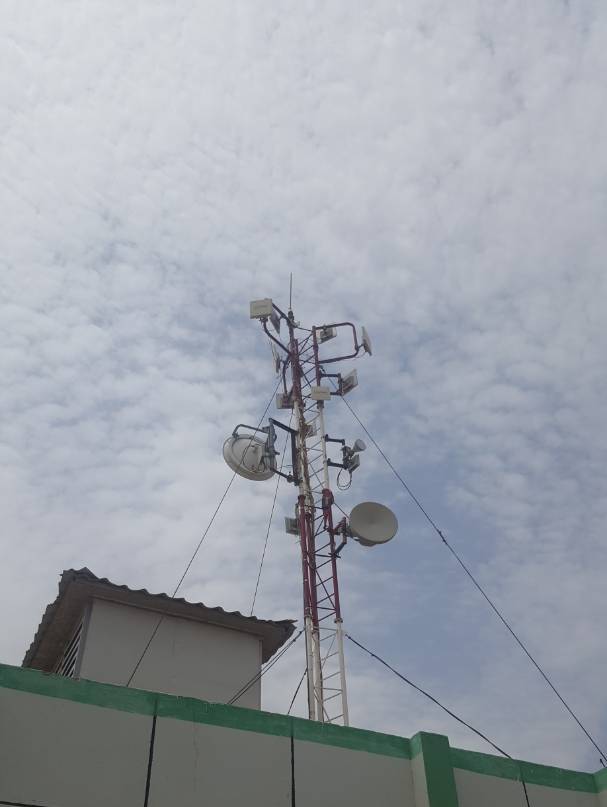

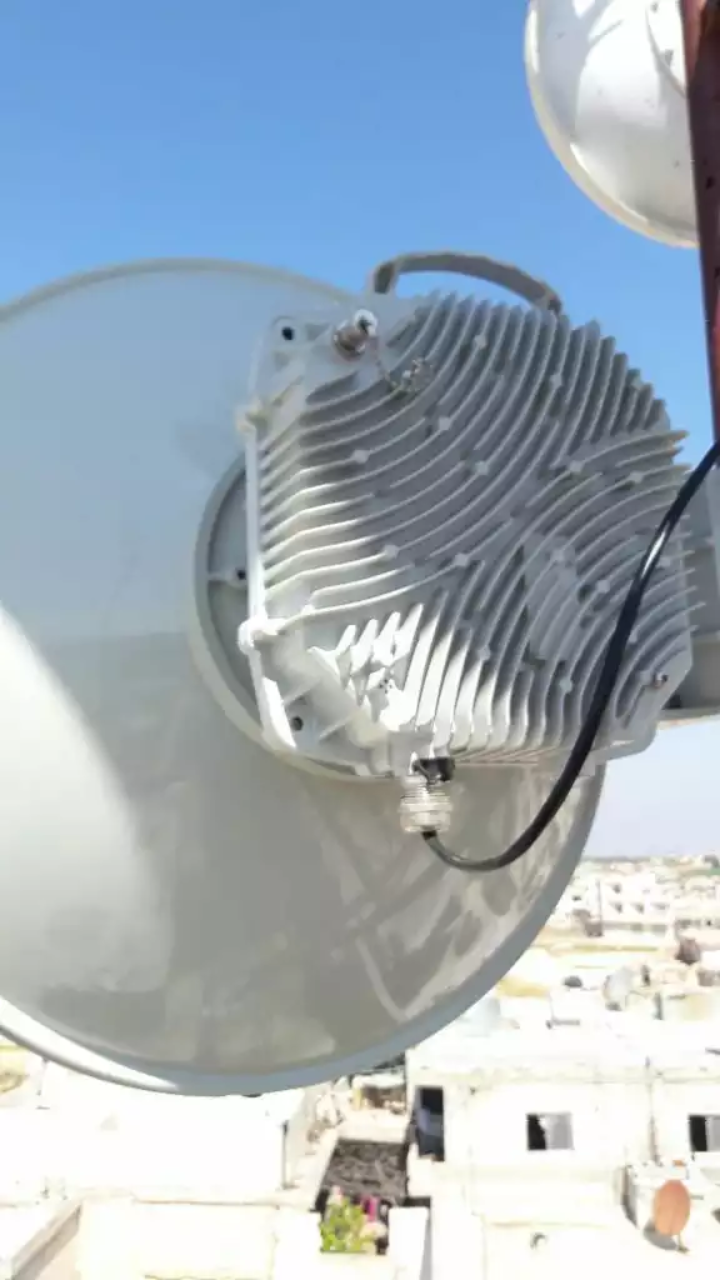

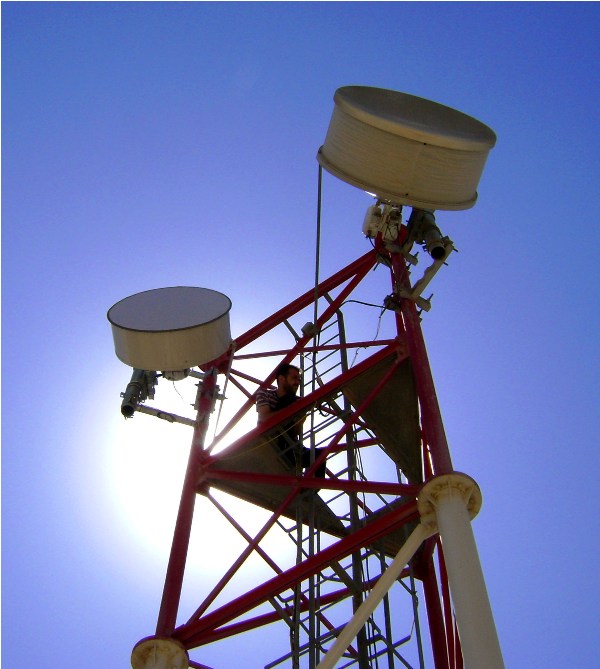

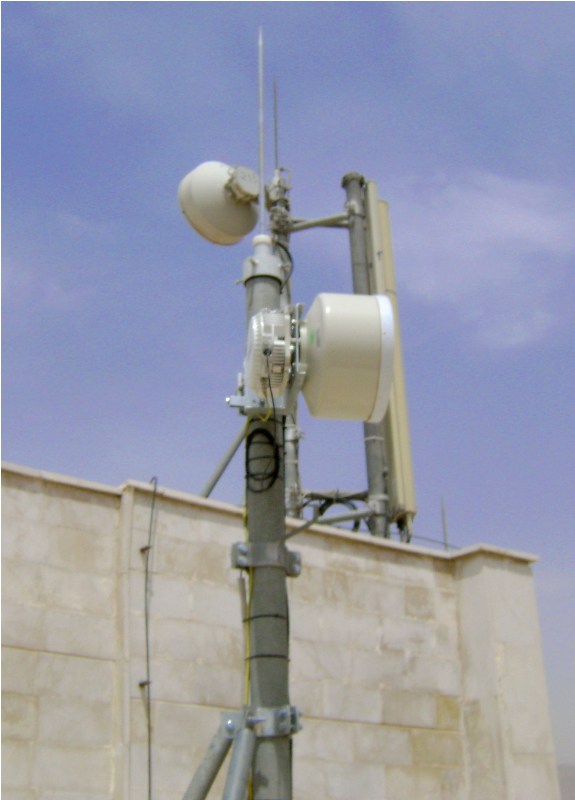

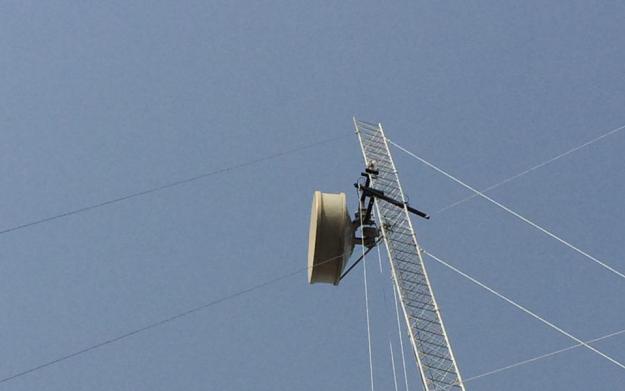

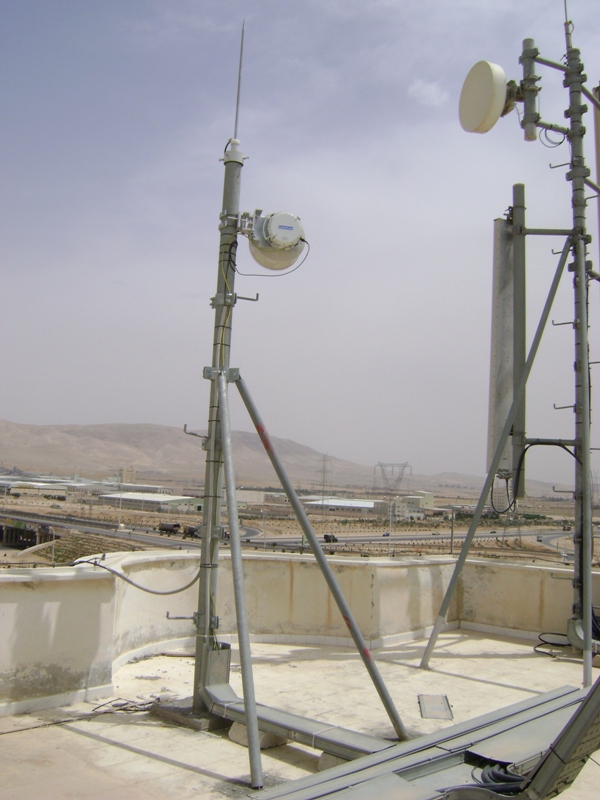

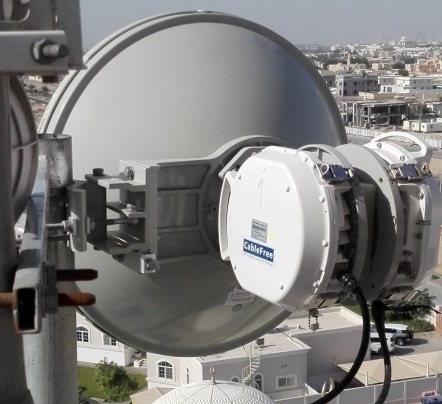

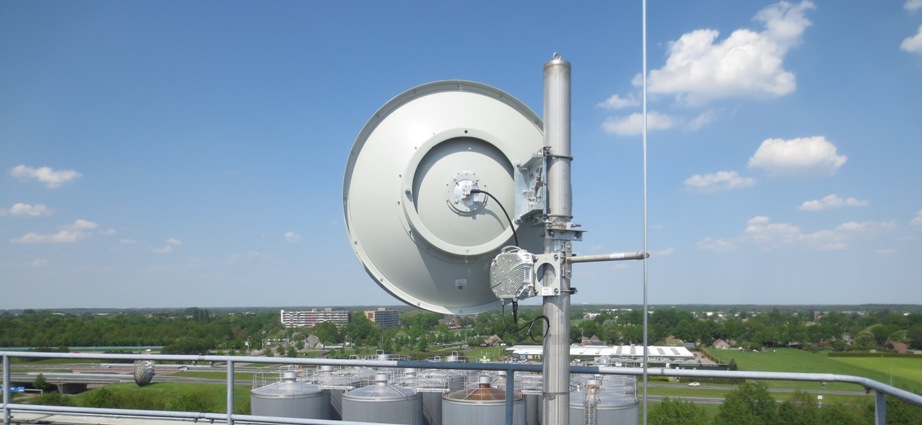

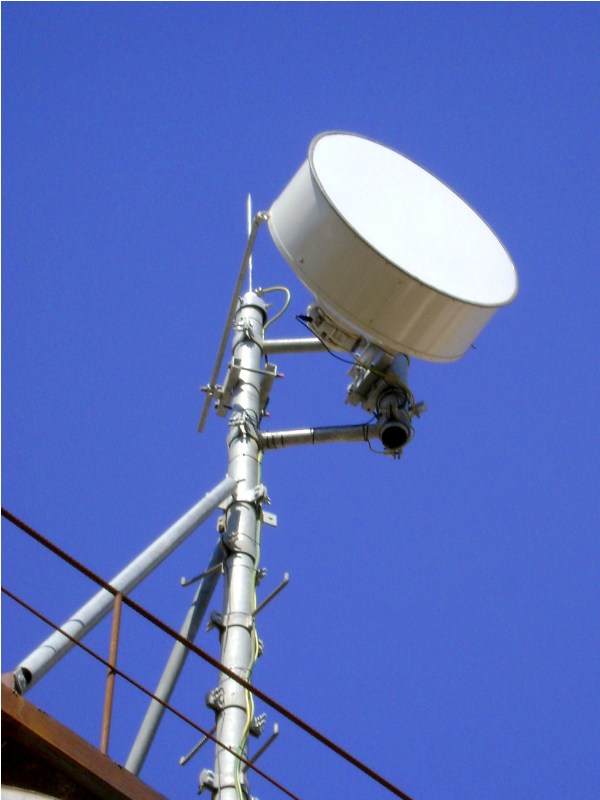

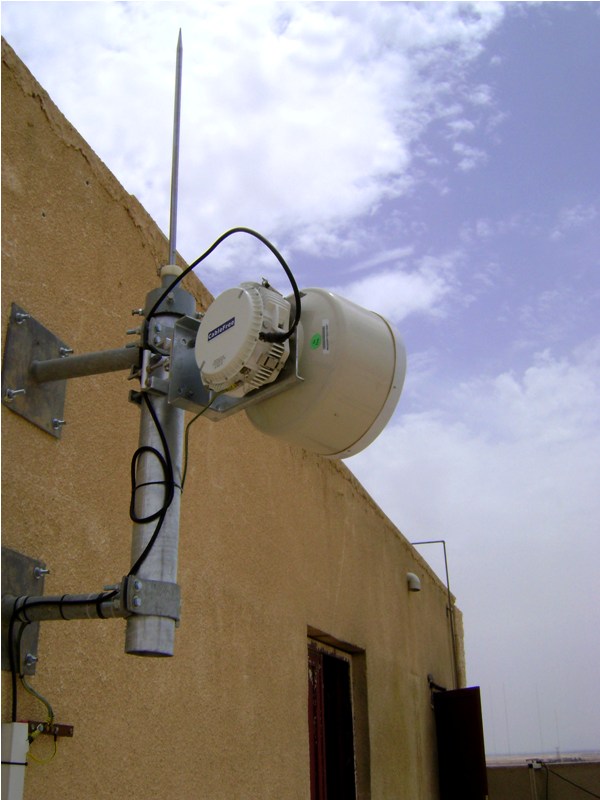

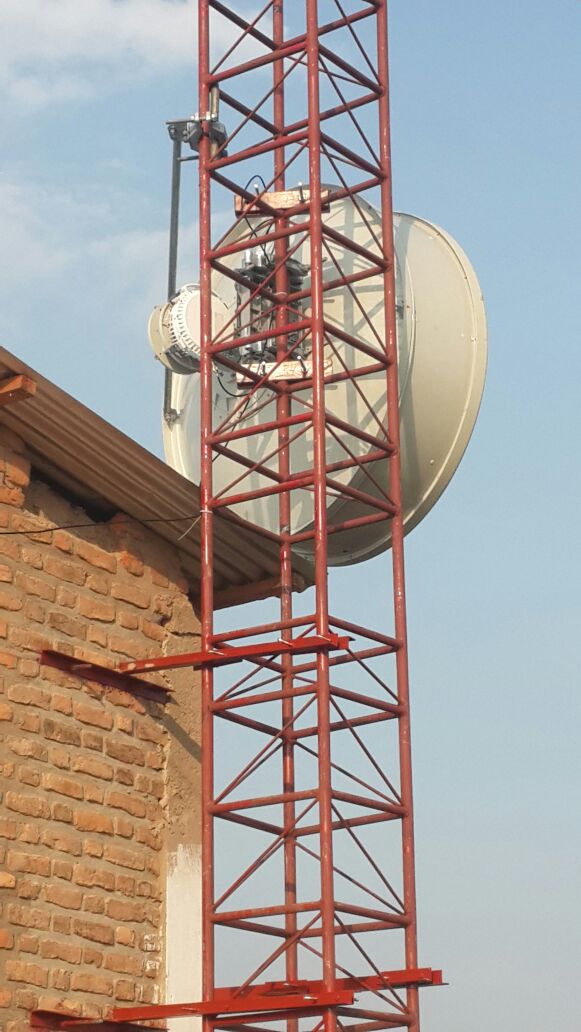

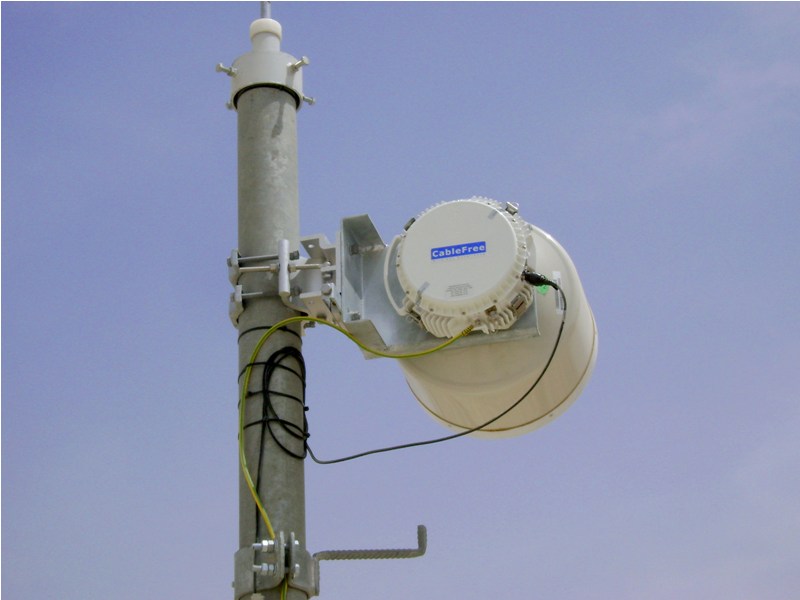

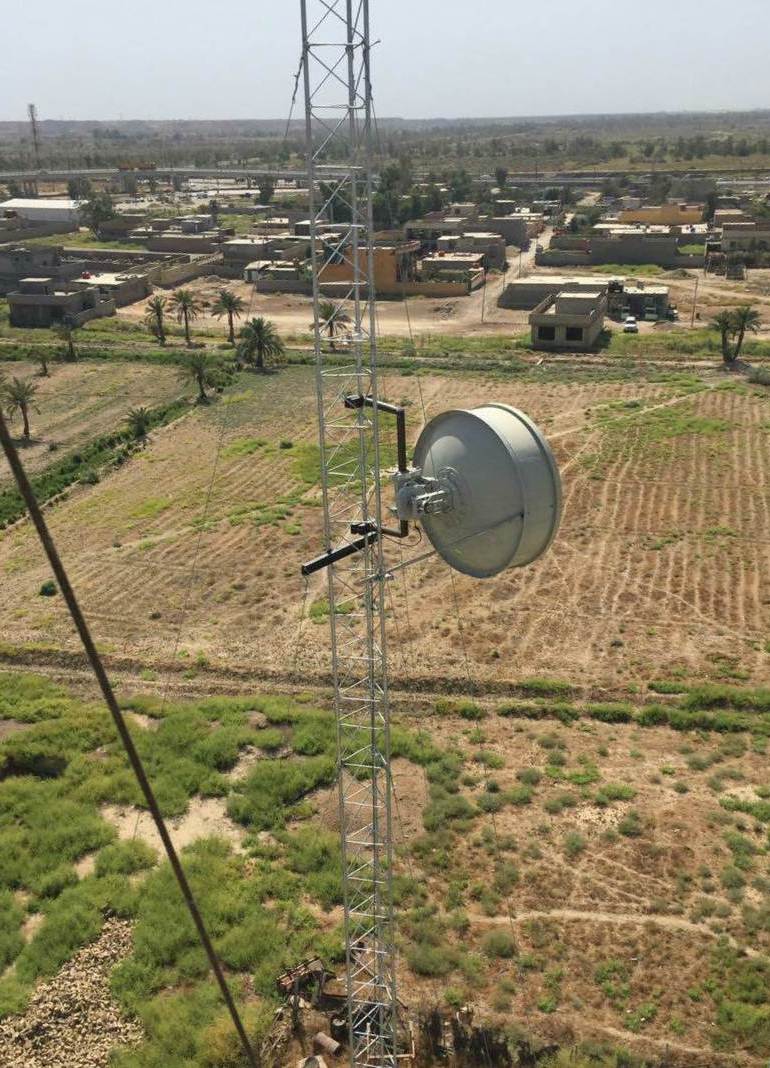

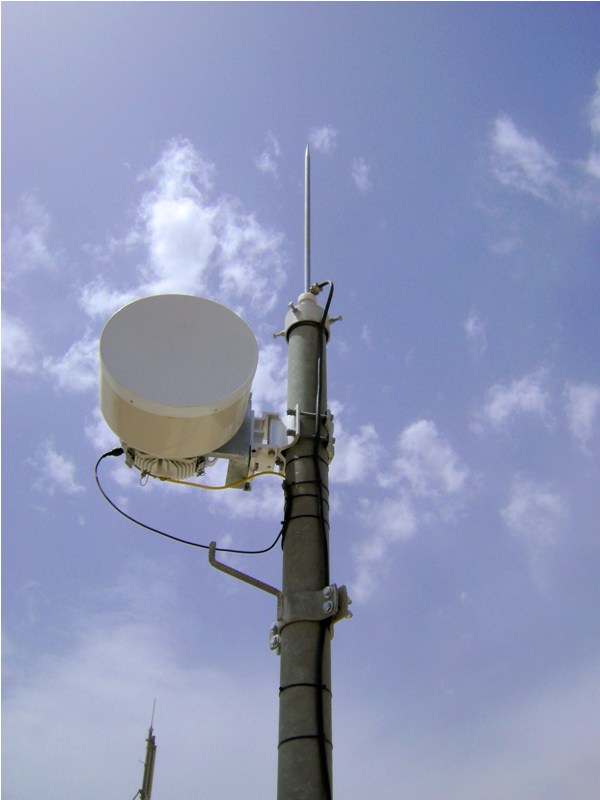

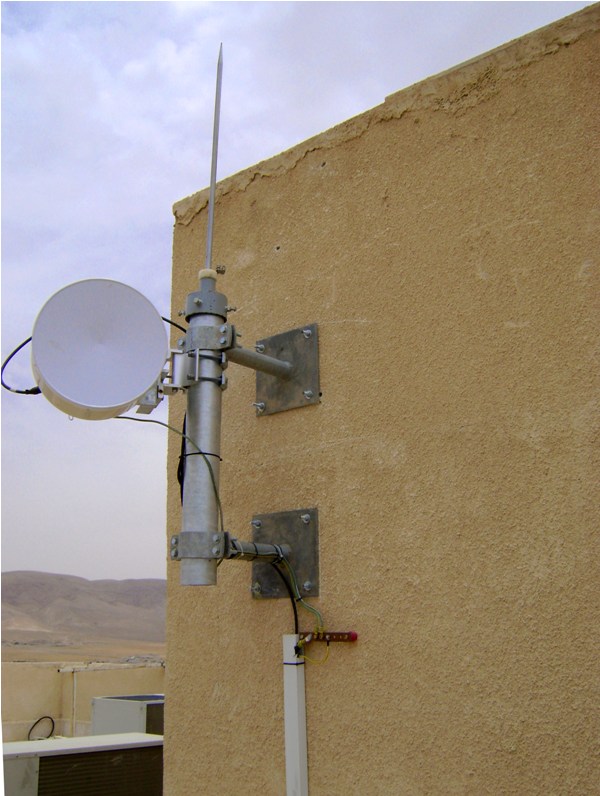

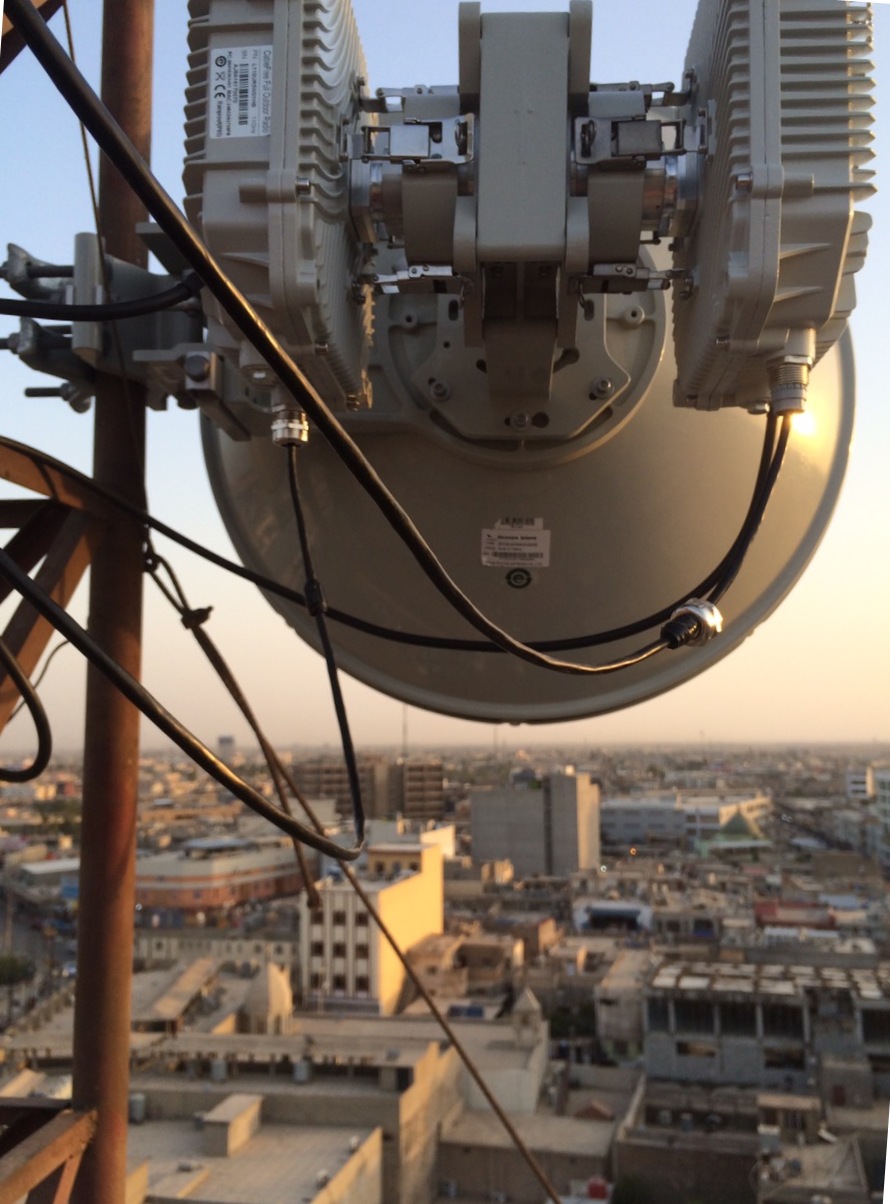

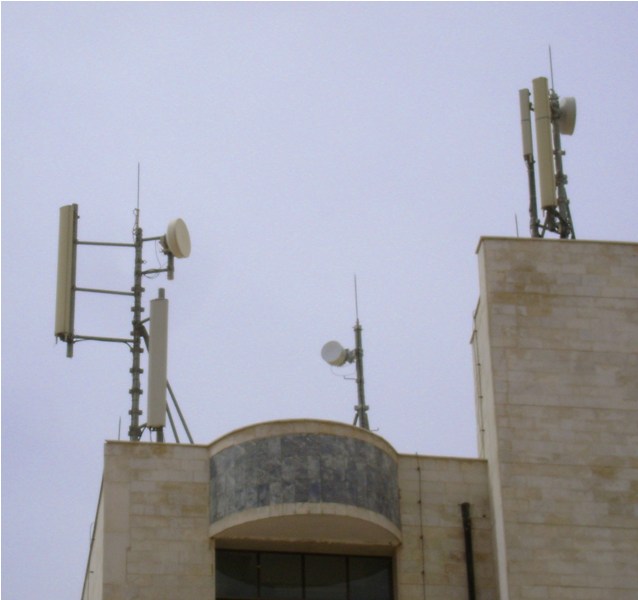

CableFree Microwave Installations

CableFree Microwave Links have been installed in many countries around the world. Some examples here:
