CableFree 4G & 5G LTE Base Station & EPC

Advanced 4G & 5G LTE-Advanced Base Station and EPC Infrastructure

CableFree 4G 5G LTE Base Station RRH

CableFree offers the Emerald range of  4G & 5G LTE Base Station and core EPC products featuring advanced cellular technology.
Our range of advanced, carrier-grade 4G & 5G LTE Base Station products includes:

  • Macro Base Stations for 4G & 5G connectivity
  • Small Cell Base Stations for 4G & 5G-NR
  • LTE Outdoor CPEs
  • LTE Indoor CPEs
  • Mobile WiFi Hotspots with LTE-Backhaul
  • Microwave and MMW Backhaul links for complete LTE-A network infrastructure

All of the the CableFree range of LTE products feature latest generation technology and upgradable features for future-proof networking and performance.

CableFree Emerald 4G & 5G LTE-Advanced Base Stations

CableFree 4G LTE Base Station solutions
CableFree 4G LTE Base Station & EPC Infrastructure

CableFree Emerald 4G & 5G LTE Software Defined Base Stations with advanced features and “stand alone” capability for private networks. Our LTE BS solutions uses latest LTE technology with transmit powers up to 4x 40W for high capacity, long range networking, and uses Software Defined Radio technology with easy upgrade to new features and high capacities.
CableFree offers EPC and other related infrastructure for complete LTE network solutions

 Please Contact Us
New Product Release!

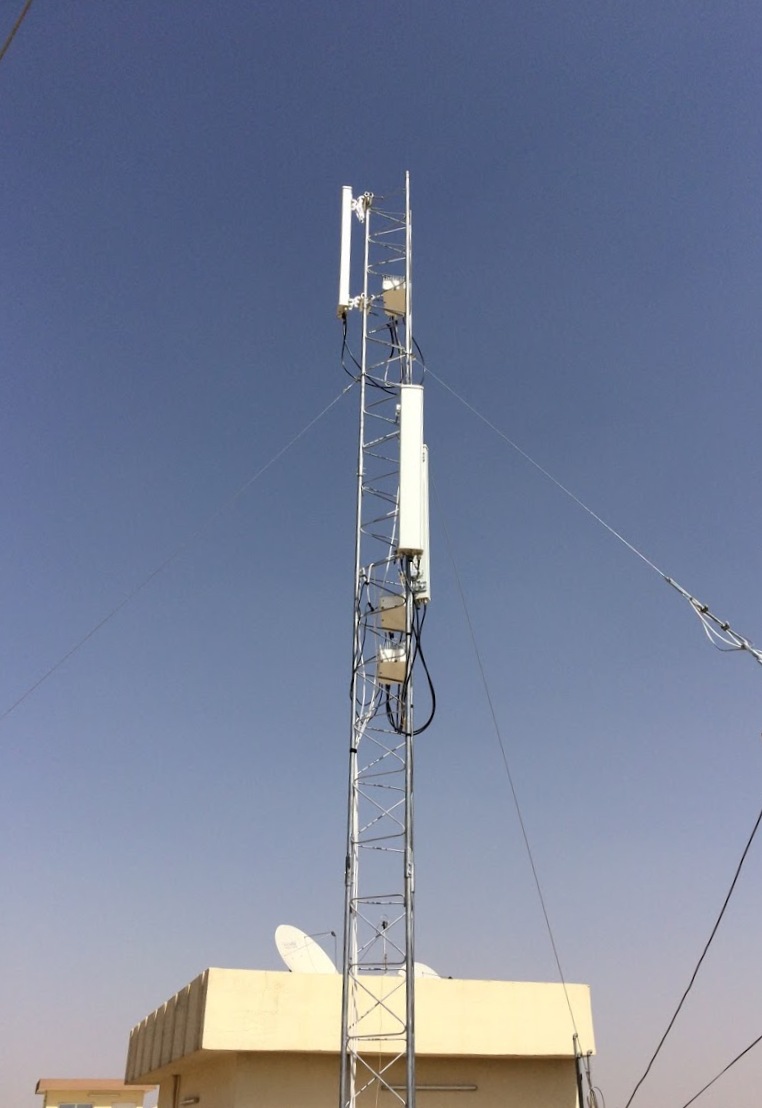

The CableFree 4G/5G LTE Base Station includes Remote Radio Head (RRH) which typically feature 2×2 or 4×4 MIMO, which are co-located on the tower with the Sector Antennas.

CableFree LTE Base Station Specifications

CableFree LTE supports the very latest in LTE 4G & 5G specifications, including:

  • LTE release 14/15 compliant: Supports 5G-NSA, 5G-SA and more
  • FDD and TDD configurations to support all common LTE bands
  • Bandwidths: 1.4, 3, 5, 10, 15 and 20 MHz
  • Multiple cells in intra-band or inter-band configurations
  • Transmission modes: 1 (single antenna) and 2 to 10 (MIMO 4×2)
  • HARQ support
  • Closed-loop UE power control
  • Frequency based MMSE equalizer
  • Highly optimized software turbo decoder
  • PAPR reduction support
  • Positioning Reference Signals (PRS) support
  • Multi-cluster PUSCH allocation
  • PUCCH 3 and PUCCH channel selection support
  • Carrier Aggregation support with cross carrier scheduling (2-3 DL channels, up to potential 5 DL channels)
  • CoMP features (DMRS scrambling identity and QCL parameters can be selected)
  • 256QAM DL support for PDSCH and MBMS
  • Standard S1AP and GTP-U interfaces to Core Network. Multiple PLMNs and S1 interfaces can be used simultaneously
  • X2AP interface between eNodeBs
  • M1 and M2 interfaces for MBMS
  • IPv6 support

Macro Sites and Microsite Base Station

CableFree LTE supports flexible deployment patterns, which can be varied to meet network demands

  • Typical macrosites have 3 or 6 Sectors
  • Micro sites could have 1 RRH with an Omnidirectional or Sector antenna,

Small Cell Base Station Solutions

In addition, CableFree offer Small Cell solutions are available with smaller form factor and lower transmit power levels of typically 500mW, 1W and up to 5W.    2×2 and 4×4 MIMO versions are offered, including dual 2×2 configurations.
Contact CableFree for details.

Unlicensed LTE (LTE-U)

CableFree offers Band 46 5GHz LTE Base Station and Outdoor CPE devices for operation in Unlicensed 5GHz spectrum, enabling smaller operators and private customers to build LTE without requiring access to licensed spectrum.  Band 46 covers 5150 – 5925MHz and uses TDD-LTE technology.
Contact CableFree for details.

Internet of Things (IoT)

CableFree 4G & 5G LTE base stations already support NB-IoT release 14 compliant standards, to enable connection of IoT devices to a CableFree LTE base station.

  • Single-tone and multi-tone category NB1 UE support
  • 15 kHz and 3.75 kHz subcarrier spacing are supported
  • All operation modes (in-band, guard band and standalone) are supported
  • Multiple NB-IoT and LTE cells can be used at the same time in the same eNodeB

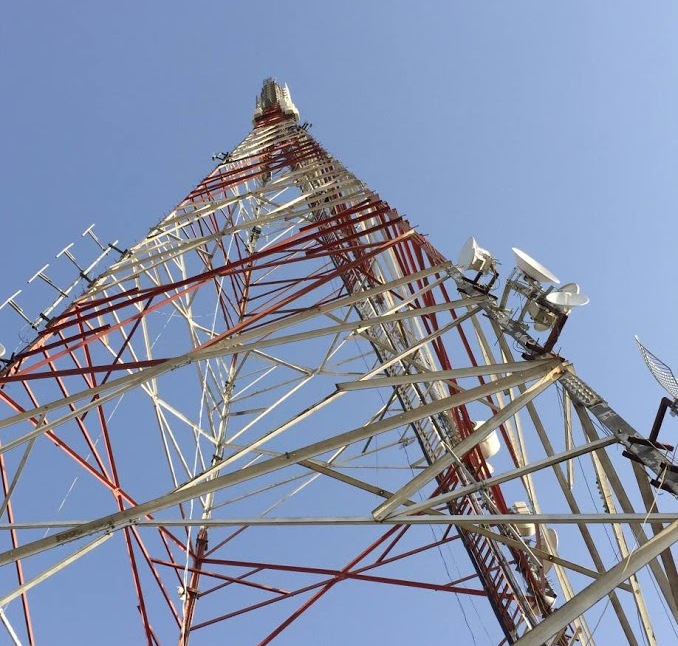

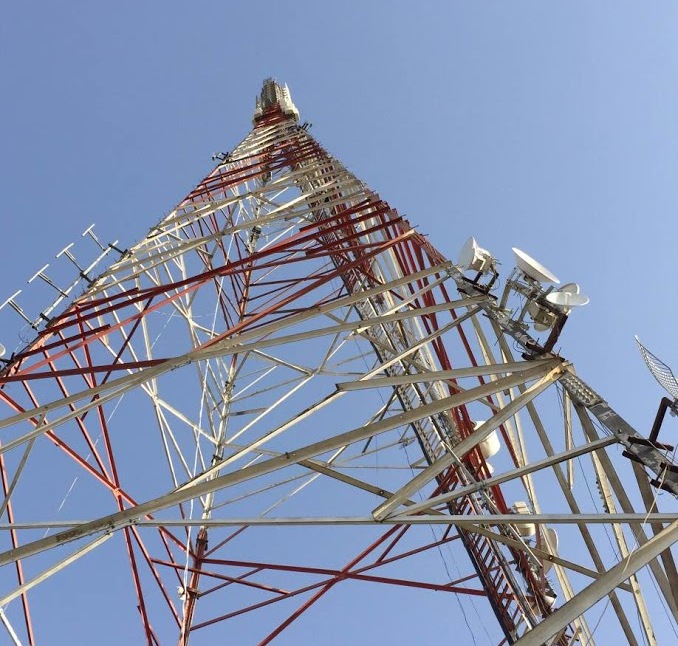

CableFree LTE Base Station Gallery

CableFree 4G LTE CPE devices

CableFree offers a wide range of 4G/LTE CPE devices for indoor and outdoor applications, fixed, mobile and nomadic users, buildings and vehicles.  These CPE devices are fully 3GPP standards compliant and can be used with either CableFree LTE Base Station infrastructure or other brands or pre-existing 4G networks.

CableFree 4G & 5G LTE Infrastructure and Backhaul Networks

CableFree Backhaul links for LTE networks using a flexible mix of Microwave, Millimeter Wave (MMW), Free Space Optics (FSO) and AC-MIMO radio

Are you considering building a 4G or 5G LTE Network?

You’ll need access to spectrum.  Generally, 4G & 5G technology uses licensed frequencies and requires regional, national or customer-specific operator frequency licenses to operate.  LTE works in frequencies from 450MHz up to 3800MHz (3.8GHz).  Options for Unlicensed LTE-U (5GHz band) are available.

CableFree Mobile WiFi hotspot products can use existing 4G operator networks and can use SIM cards and billing plans from those operators in order to provide bandwidth

For customers without access to LTE frequency bands or networks, we can suggest our other complimentary range of products which can operate in other licensed or unlicensed frequencies.

Installing and Operating CableFree LTE

The CableFree range of LTE products are normally implemented by approved integrator partners on a project-specific basis to create a complete network solution.  4G and 5G base station infrastructure are complex and require detailed configuration to operate.

Operators generally need suitable skills, training and support to implement a 4G or 5G network.  If you require a support contract from CableFree, please ask for a quotation.

Please note that available operating distances/ranges depend on RF environment, antennas, regulatory limits (EIRP), frequency and interference planning, and TDD timing modes.  Please clarify before ordering which modes you intend using with your network.  Additional modes needed later may require additional software or support.

Product Features and Performance options

Please check carefully with CableFree Technical Support that the specific combinations of frequency, bandwidth, modulation, power, range and capacity you desire are available before confirming any orders.  The advanced reconfigurable technology used in CableFree 4G & 5G base stations is highly flexible but certain combinations of bands and modes may require extra hardware, have certain restrictions in use or in very unusual cases be unavailable.  We will be very happy to advise on most suitable configurations to ensure you have the best performing network available.

For Further Information

Please Contact Us for more information on our exciting range of solutions using LTE technology
