CableFree Amber Crystal MIMO OFDM Radio
CableFree Amber Crystal MIMO OFDM Radio

Wireless Excellence has a complete range of high performance, carrier-class broadband radio equipment with throughput up to 867Mbps in licensed or unlicensed bands.  Our CableFree range of MIMO OFDM radios has superior throughput, features and performance and are widely used in Enterprise, Wireless ISP, Government, CCTV security applications worldwide,
Major technology advantages of our range include:

    • Ability to deploy in Point to Point (P2P) as well as Point to Multipoint (P2MP), Mesh, Star, Ring and other architectures
    • MIMO technology to greatly increase throughput and capacity using multiple spatial “streams” utilising the same frequencies
    • OFDM technology which enables Near-Line-of-Sight and Non-Line-of-Sight (NLOS) connections
  • CableFreeMAX Advanced Framing and Polling technology to increase throughput and remove “ACK timing” limitations faced by conventional TDD / CSMA radios

CableFree Radio Products

CableFree Amber Crystal IHPR-MIMO-AC2 and HPR-MIMO-AC2

High performance radio with up 650/867Mbps 2×2 AC MIMO OFDM radio operating in the 4.9-6.1GHz unlicensed and licensed bands
Integrated Antenna:  PDF Datasheet    Connectorised:  PDF Datasheet

CableFree Pearl

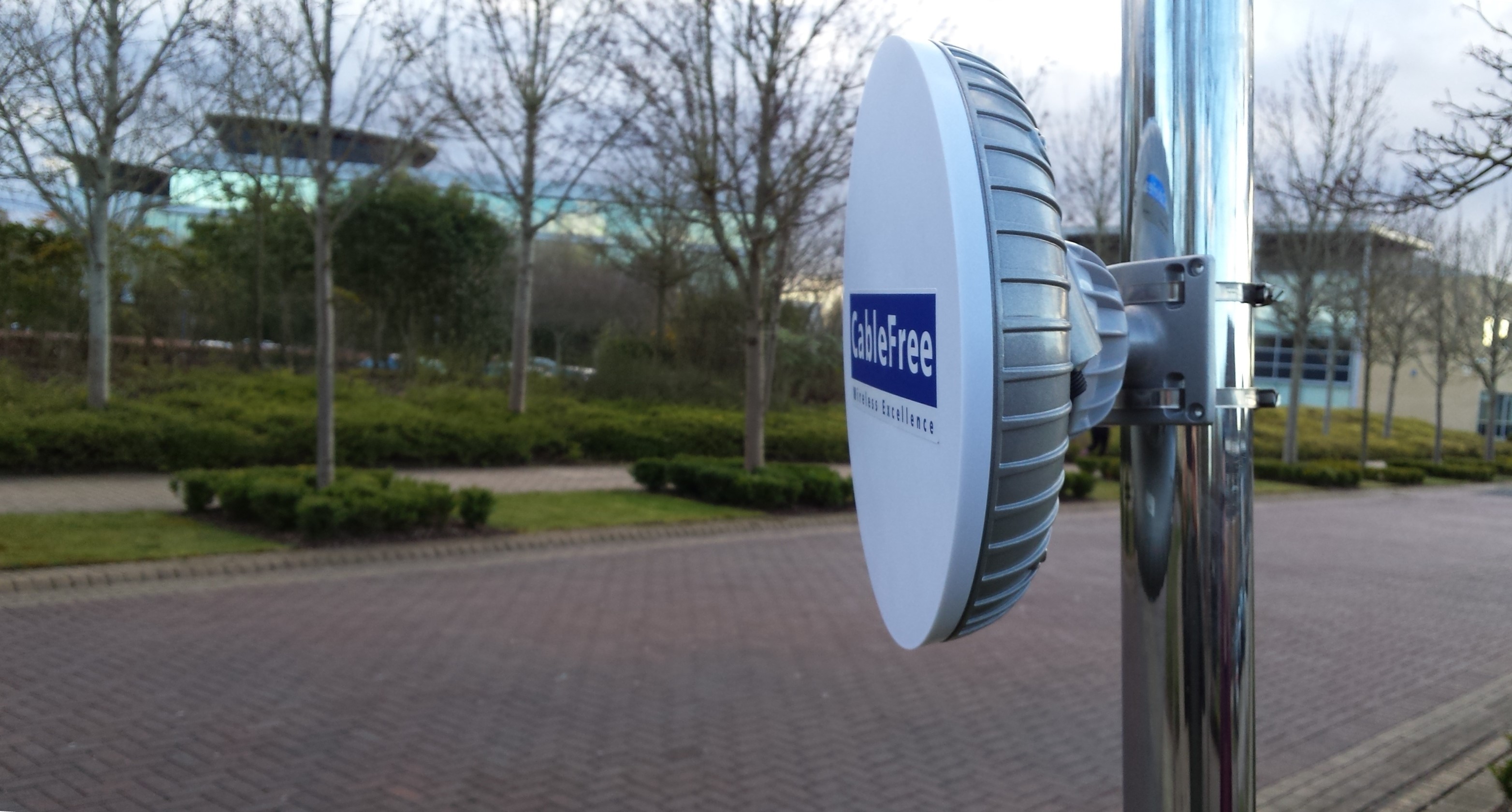

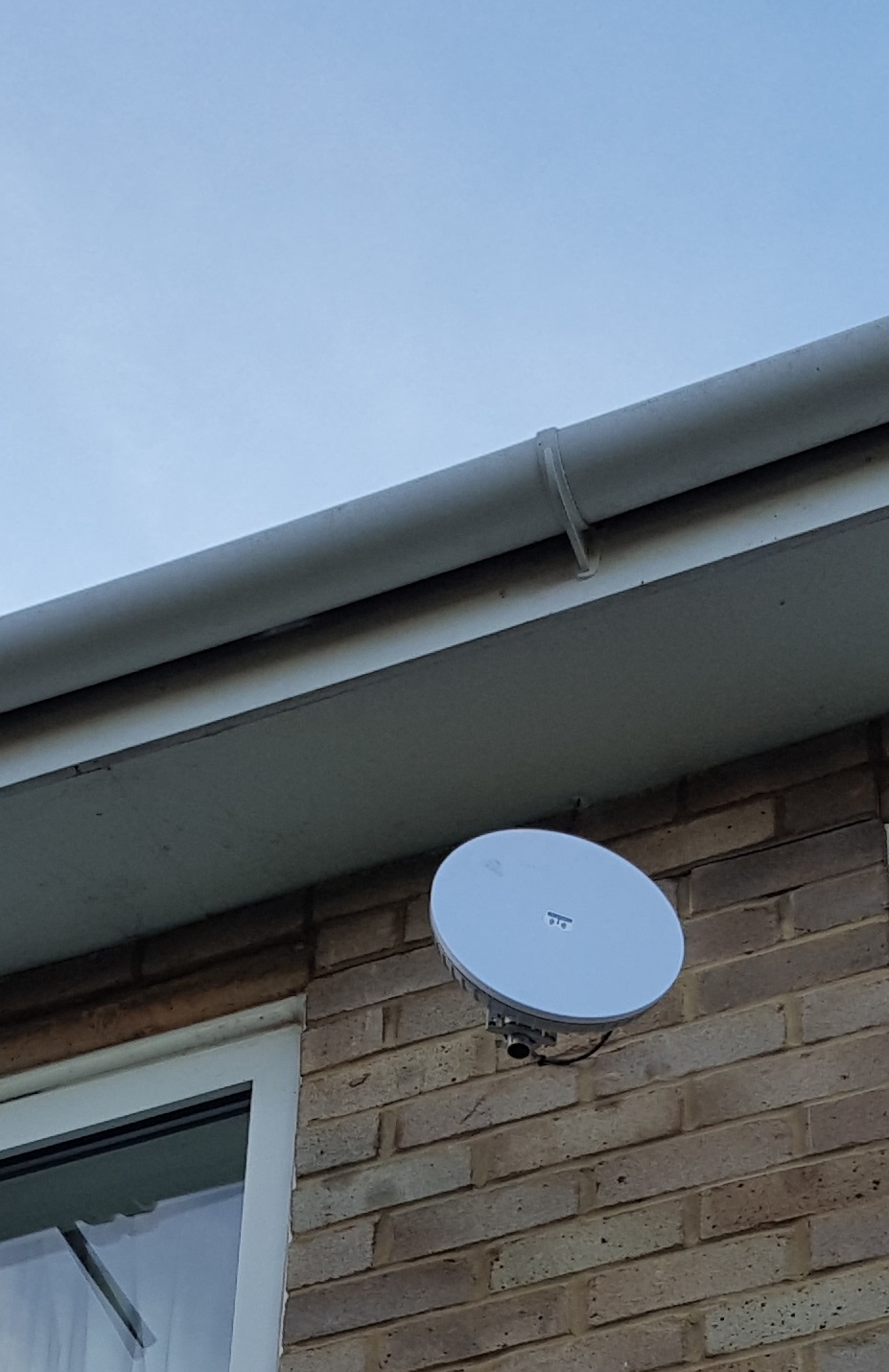

CableFree Pearl MIMO Radio
CableFree Pearl MIMO Radio

CableFree Pearl comes in a different options including high performance radio with up 867Mbps AC or 300Mbps 2×2 MIMO OFDM radio operating in the 4.9-6.1GHz unlicensed and licensed bands.  2.4GHz Model is available covering 2.3-2.5GHz
 PDF Datasheet

CableFree Pearl LC

The LC is a lower-cost variant for cost-sensitive applications.  Offering the same high throughput as CableFree Pearl, with lower-cost housing for even the most demanding price points
 Please Contact Us

CableFree IHPR-MIMO and HPR-MIMO

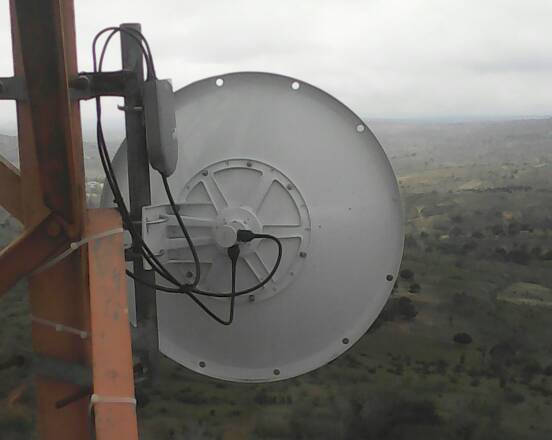

CableFree Amber Crystal Connectorised Radio

High performance radio with up 220/300Mbps 2×2 MIMO OFDM radio operating in the 2.3-2.5 or 4.9-5.9GHz unlicensed and licensed bands
Integrated Antenna:   PDF Datasheet
Connectorised:             PDF Datasheet

CableFree ICR-N and ICR

Low cost, high performance integrated radio operating in the 2.3-2.5 or 4.9-5.9GHz unlicensed and licensed bands
ICR-N:  PDF Datasheet    ICR:  PDF Datasheet

CableFree CCR-N

Low cost, high performance connectorised radio operating in the 2.3-2.5 or 4.9-5.9GHz unlicensed and licensed bands
CCR-N:  PDF Datasheet

CableFree Sapphire

Very Low cost, high performance AC-MIMO integrated radio operating in the 4.9-6.1GHz unlicensed and licensed bands
Sapphire:  PDF Datasheet

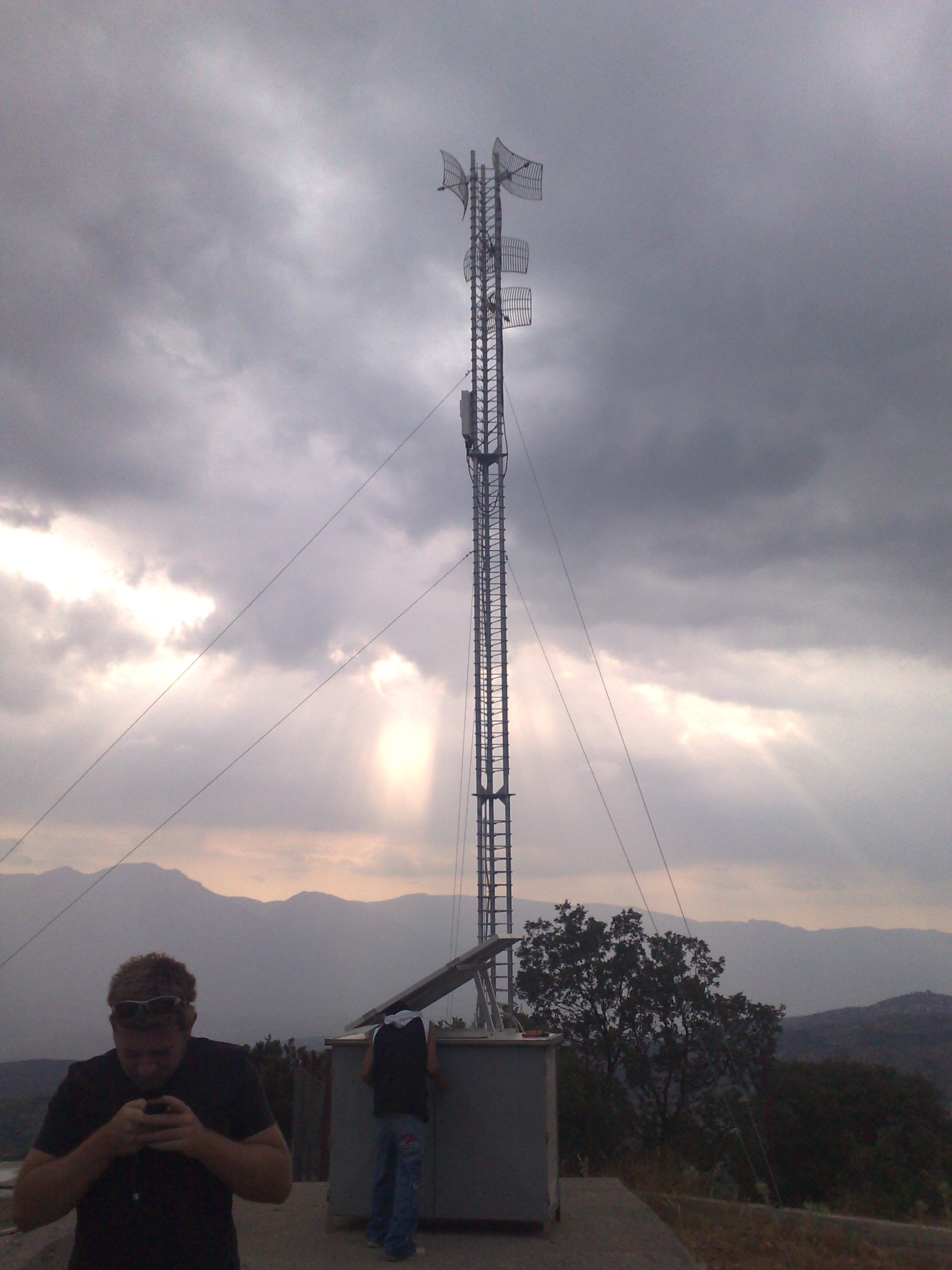

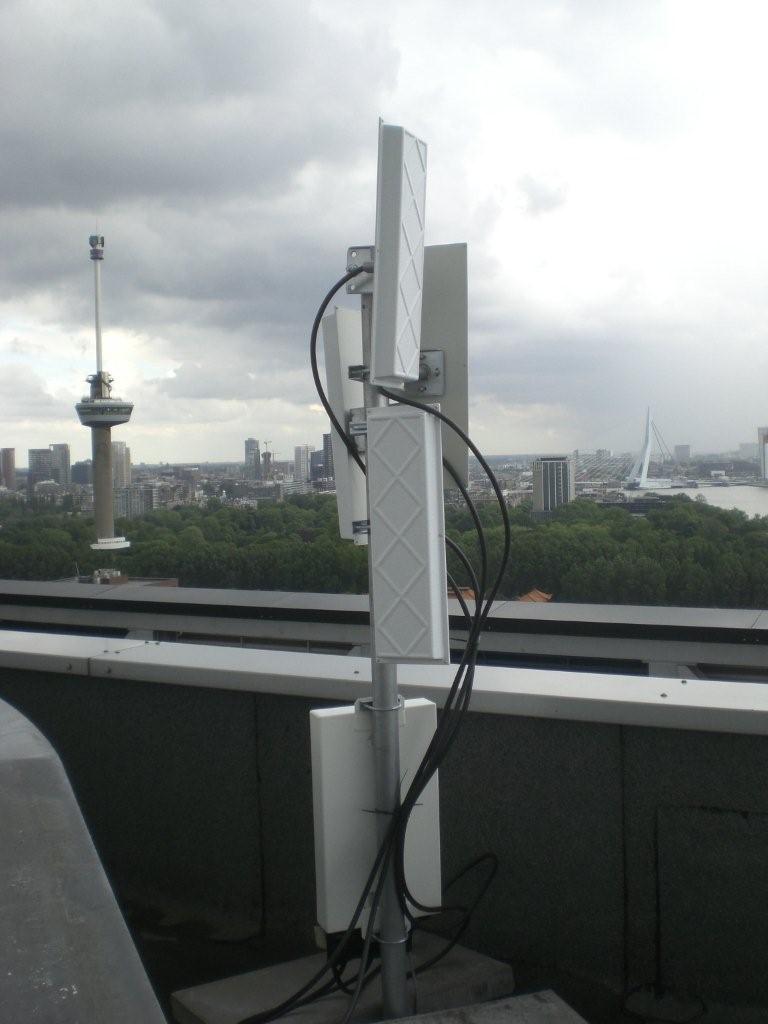

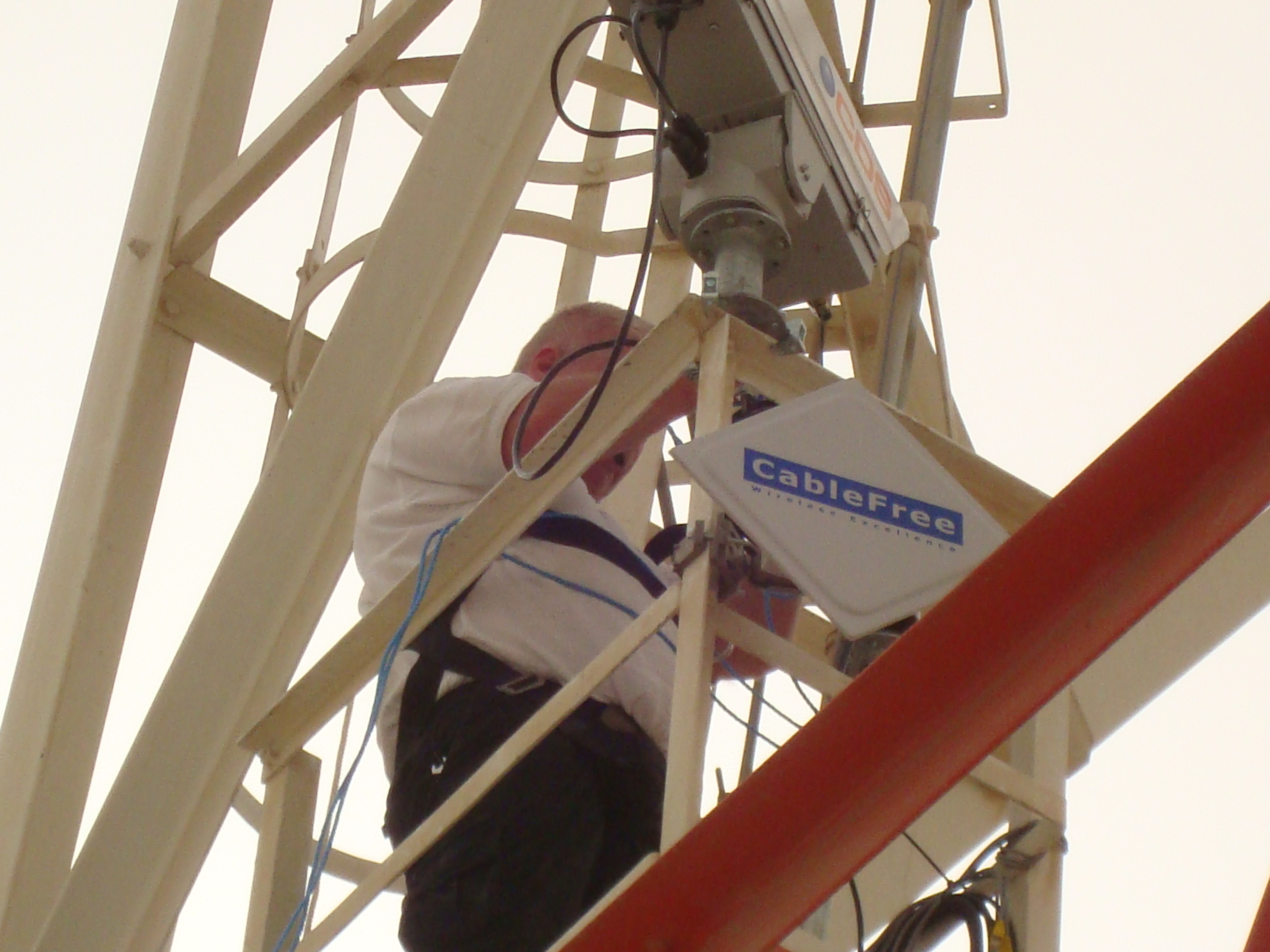

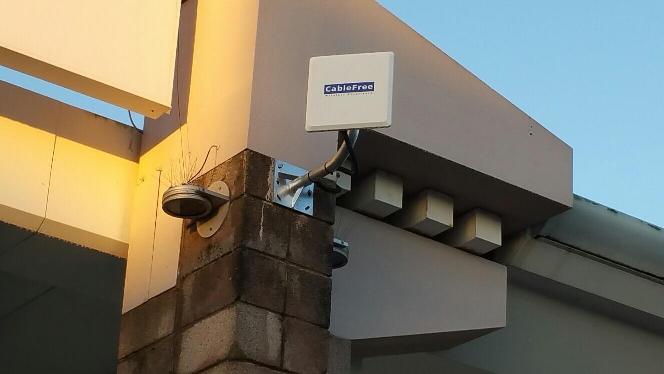

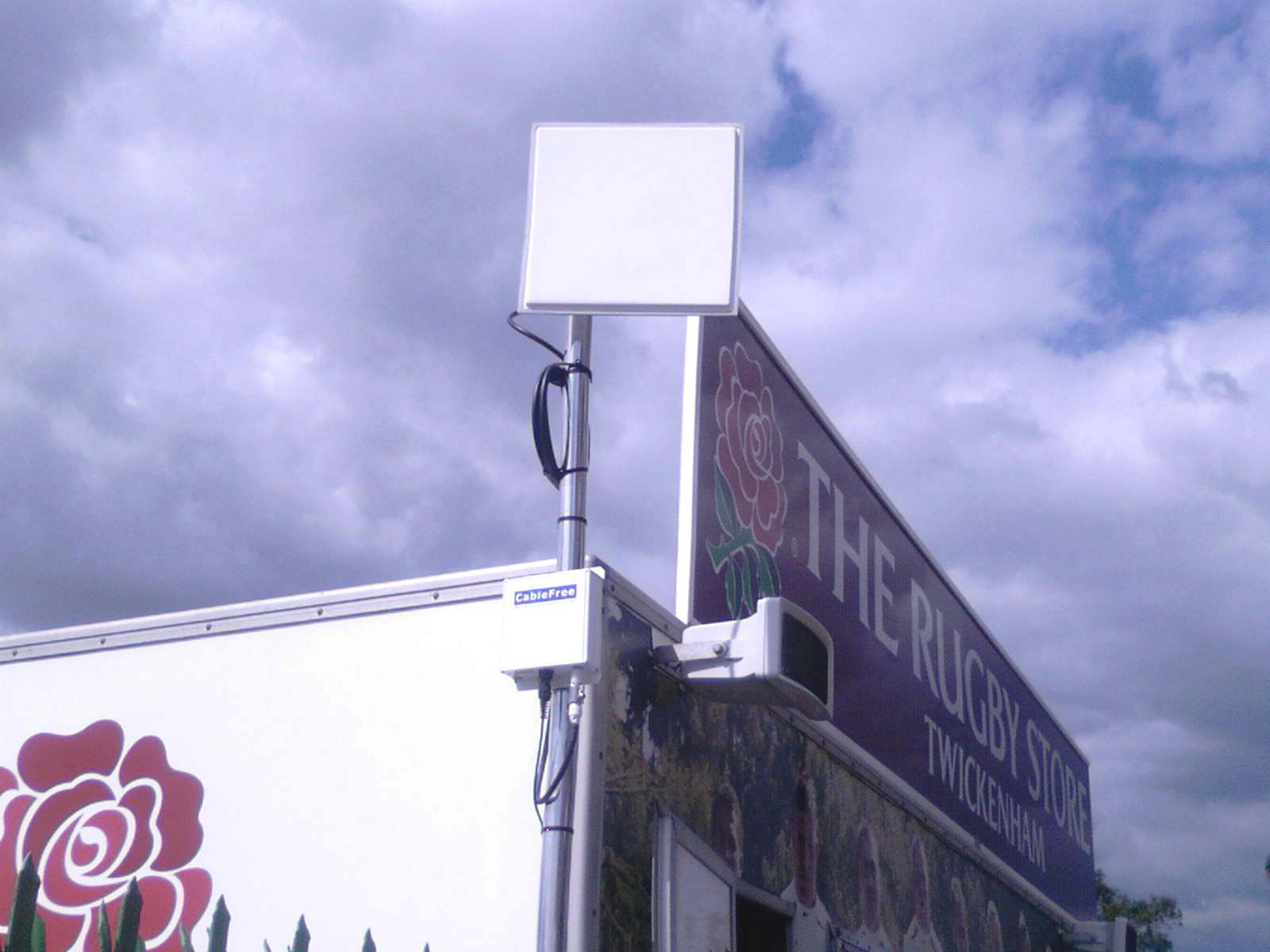

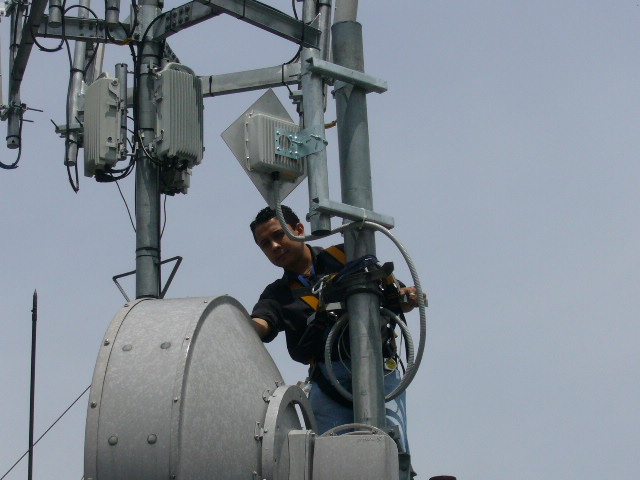

CableFree MIMO Radio Installations

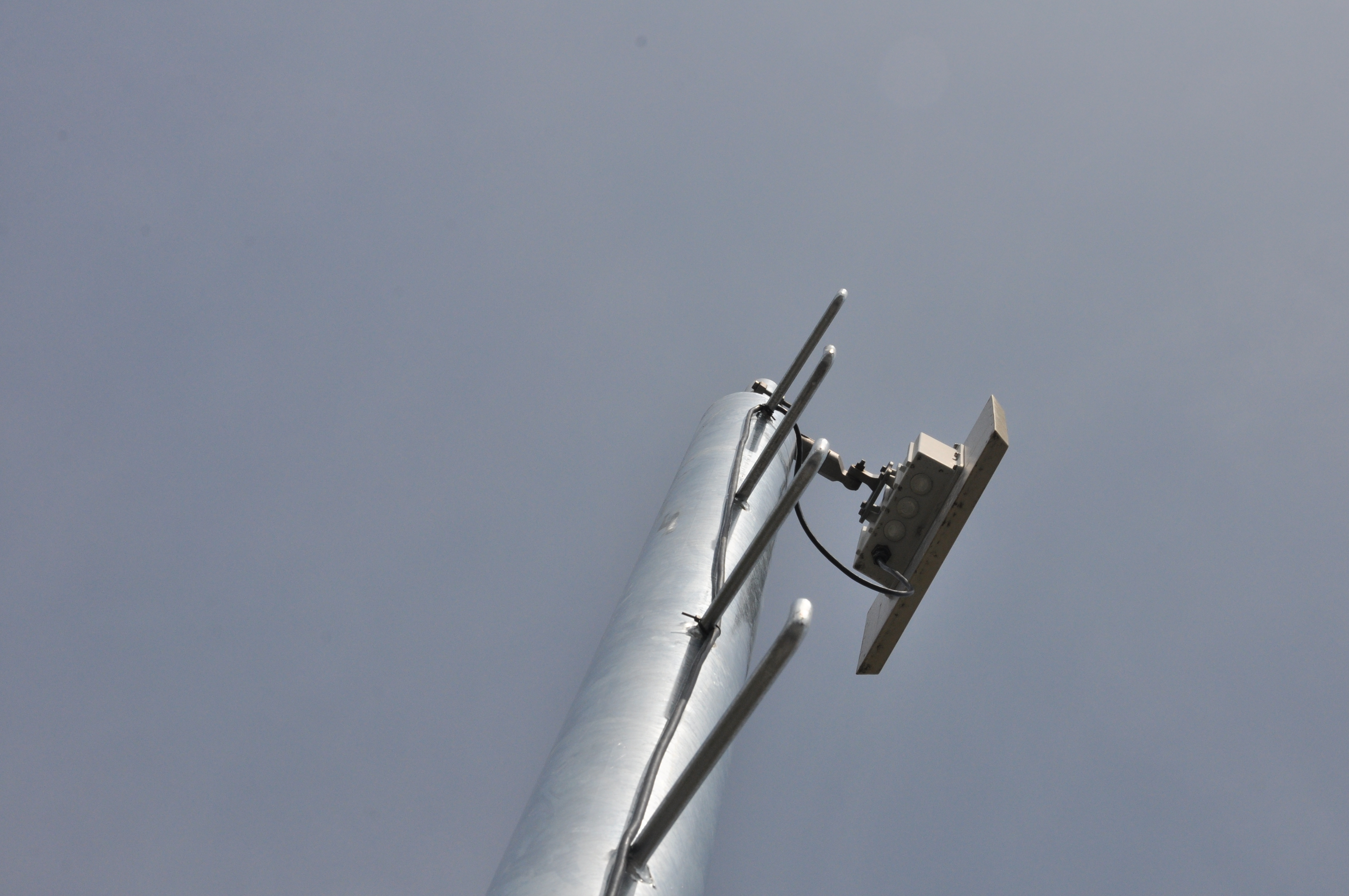

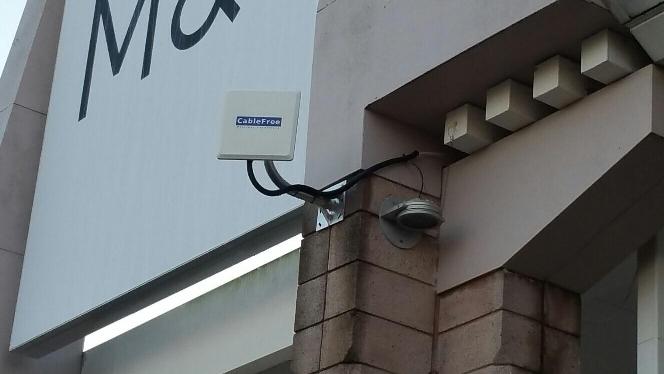

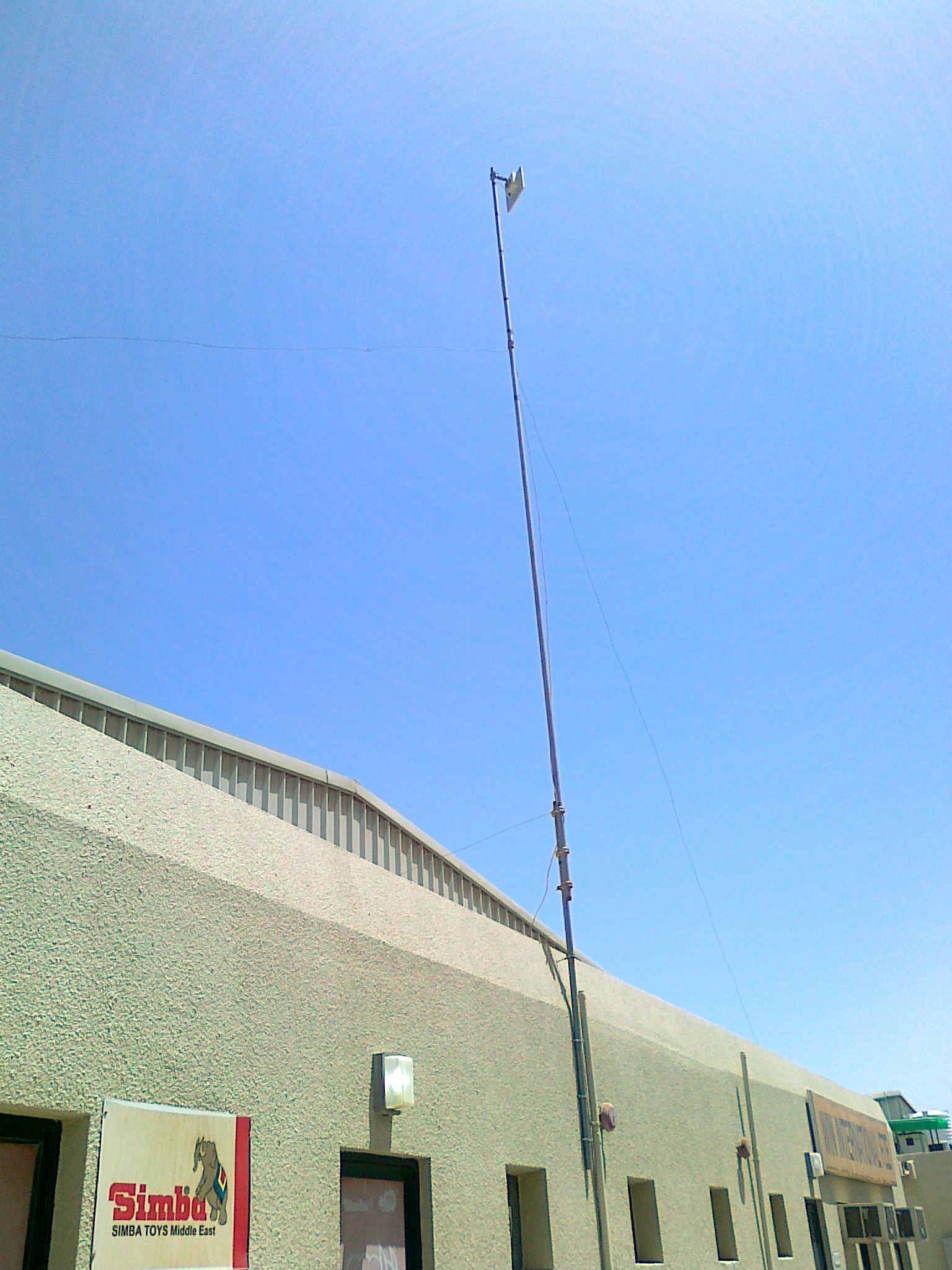

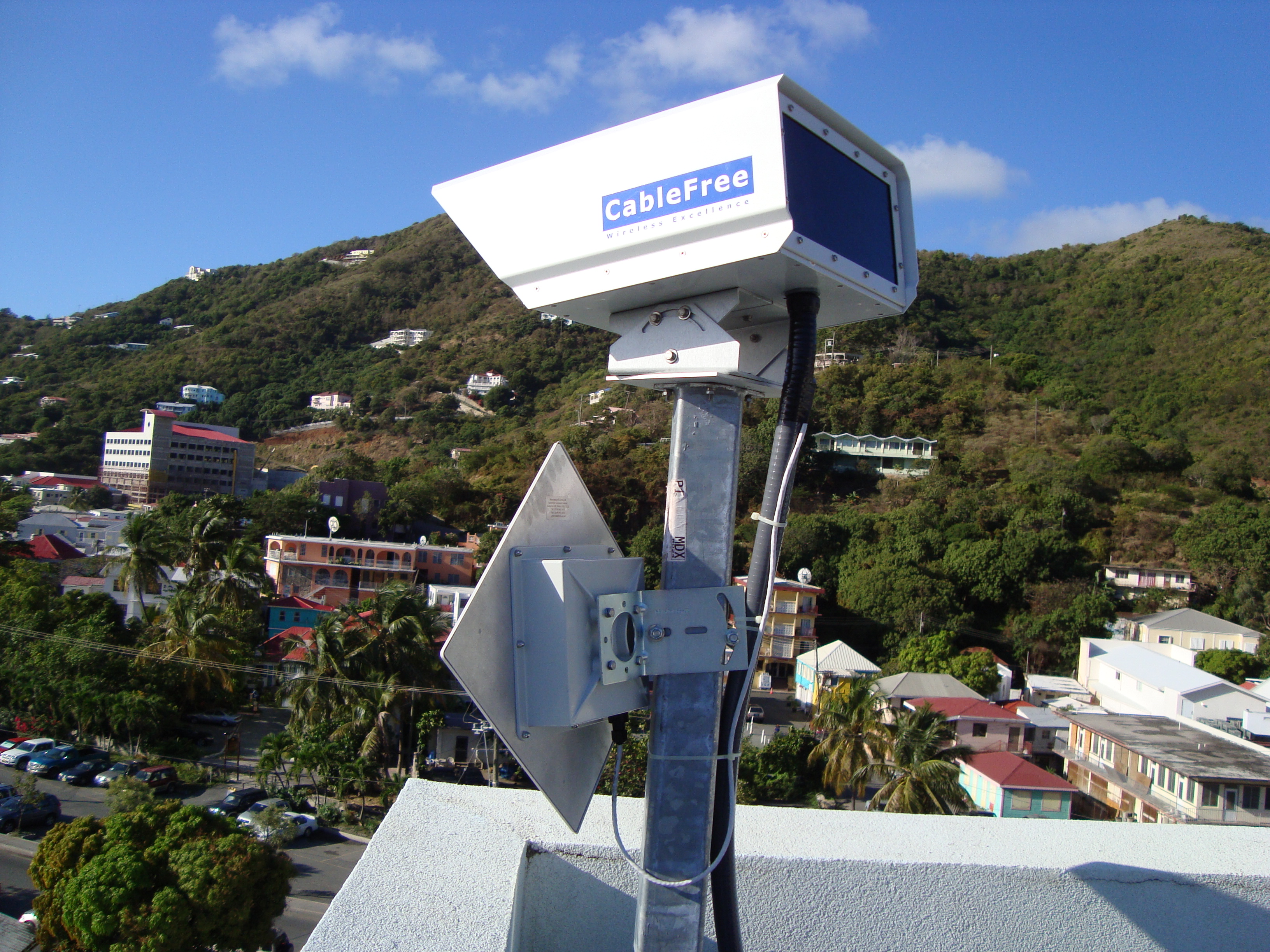

Installation of CableFree MIMO Radios

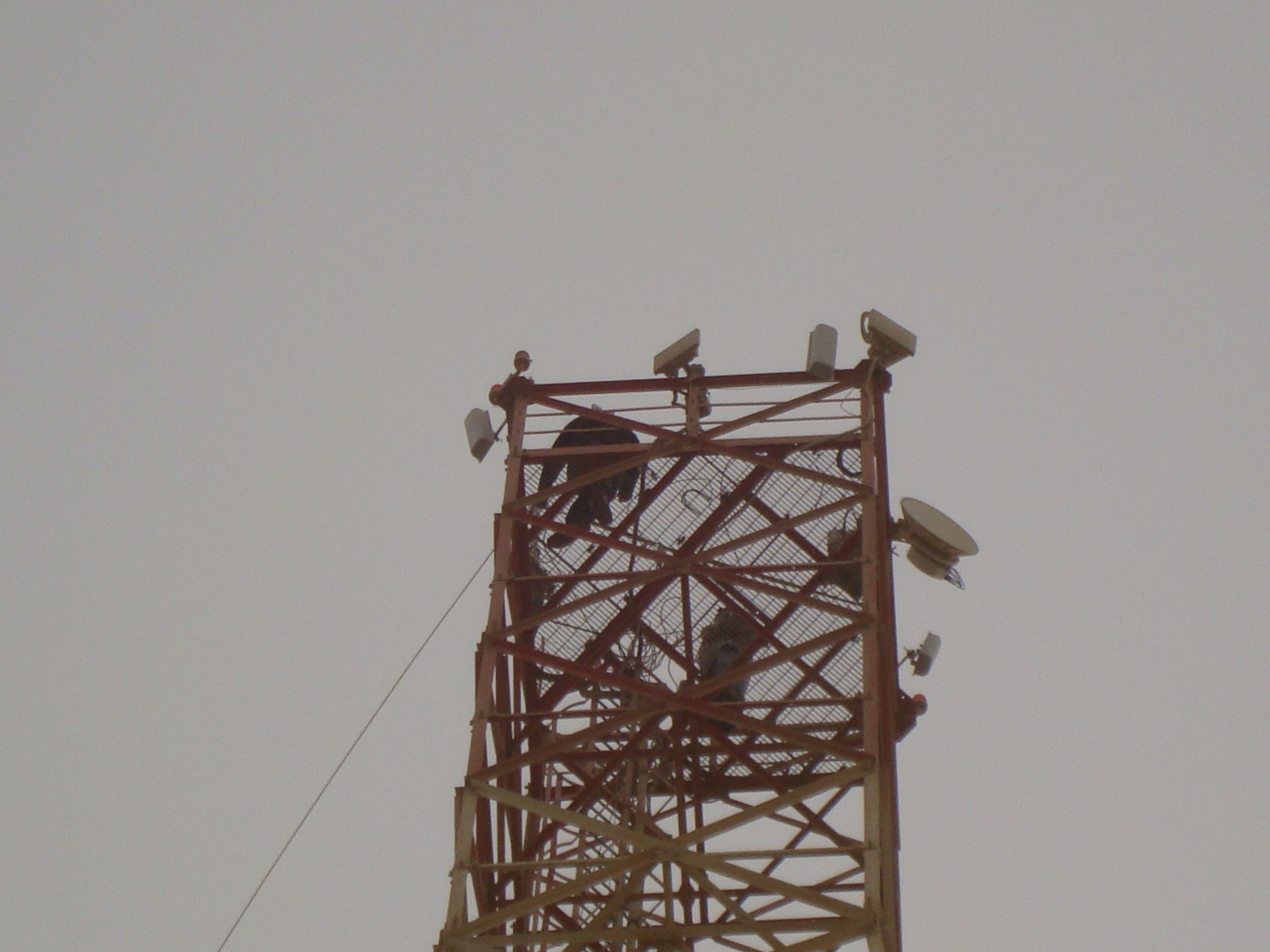

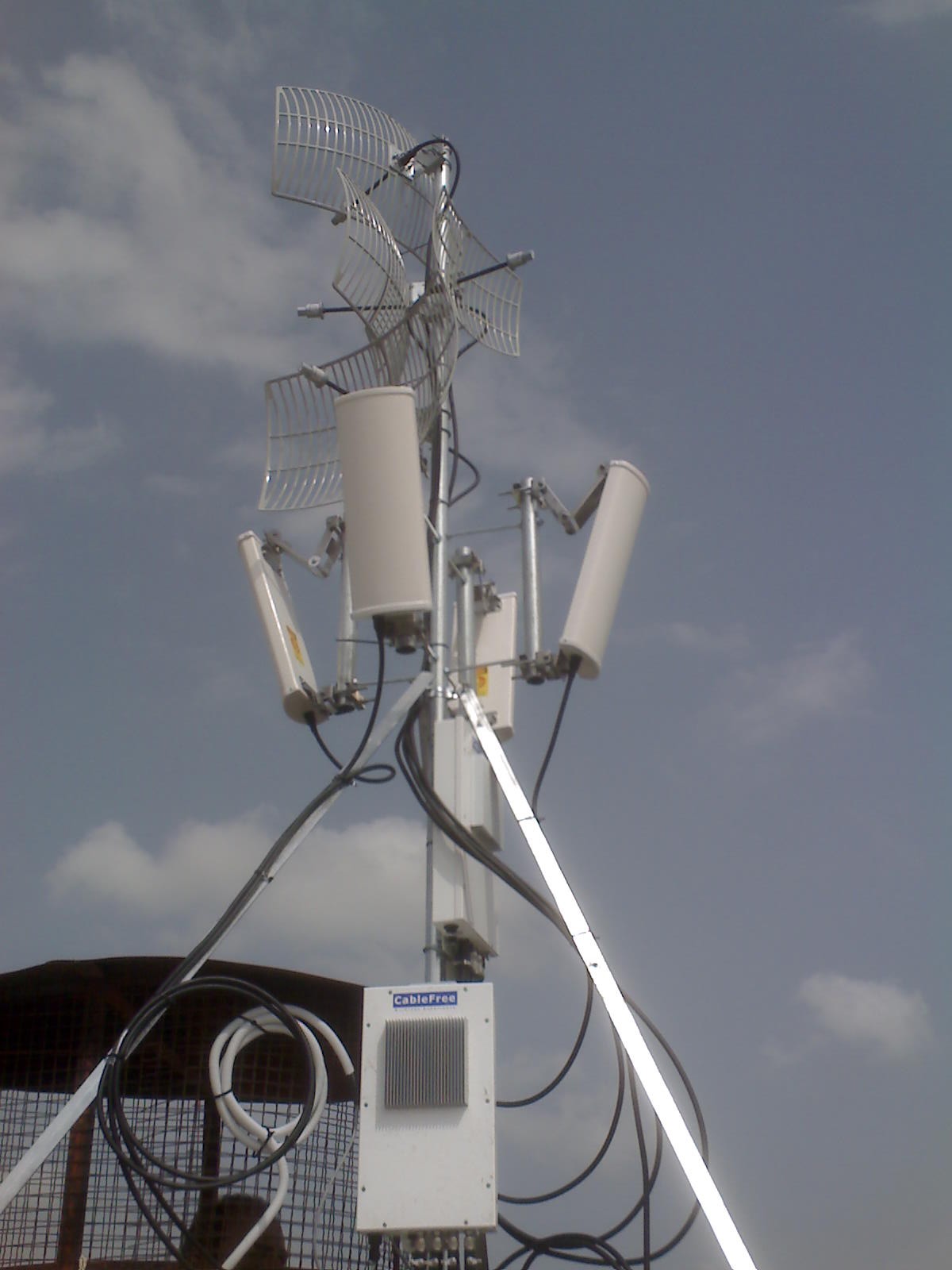

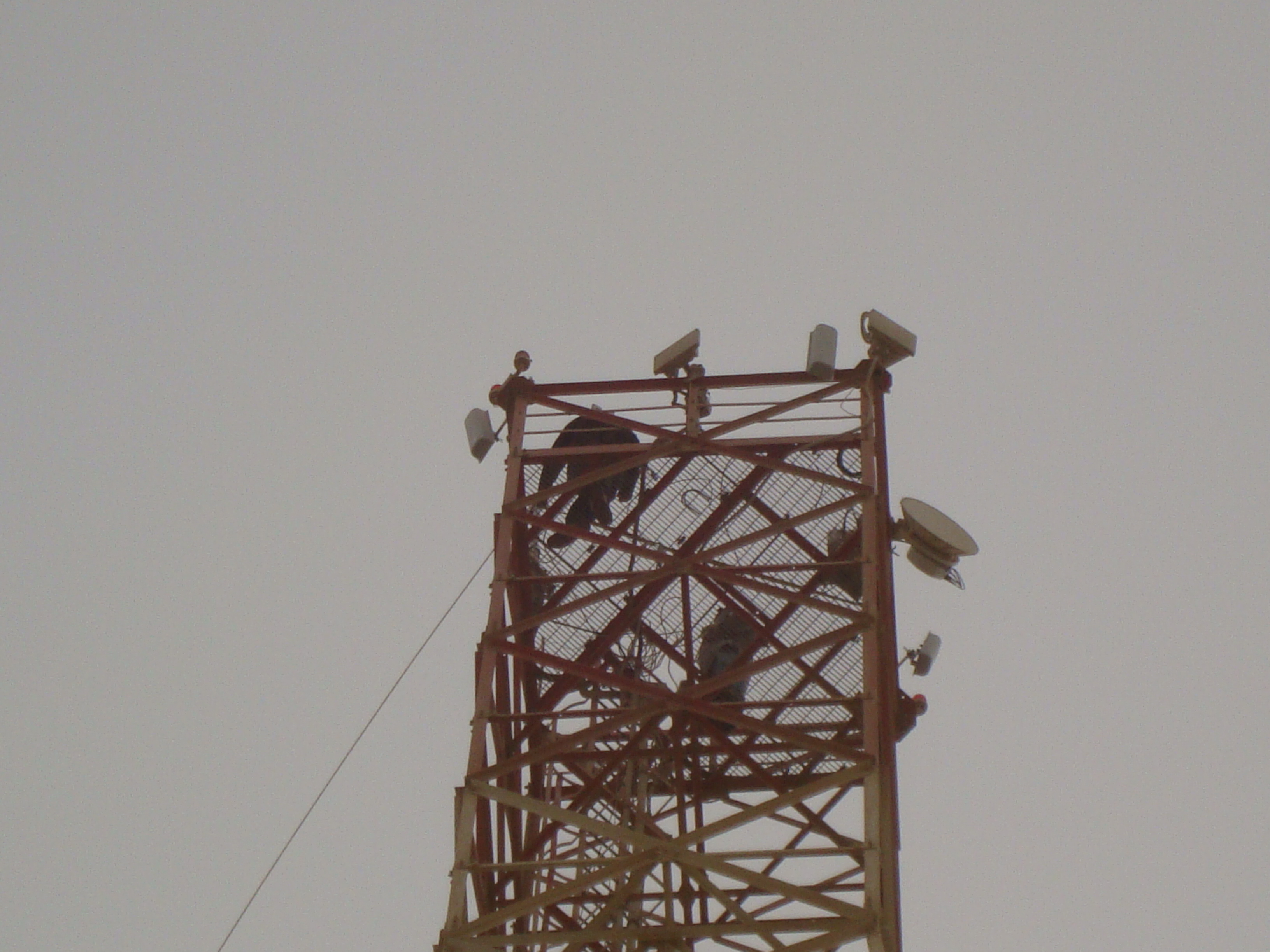

CableFree Amber Crystal Base Station installed in North Africa

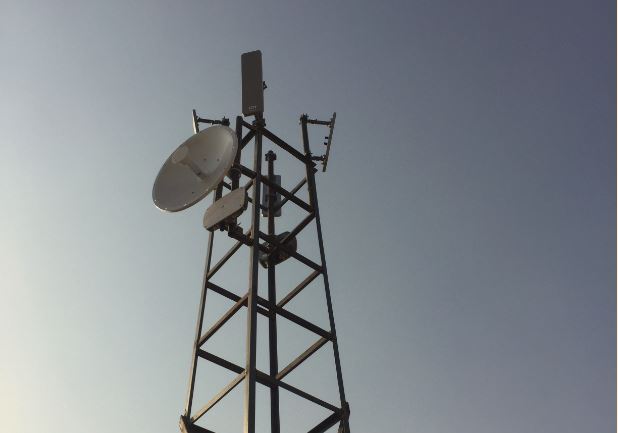

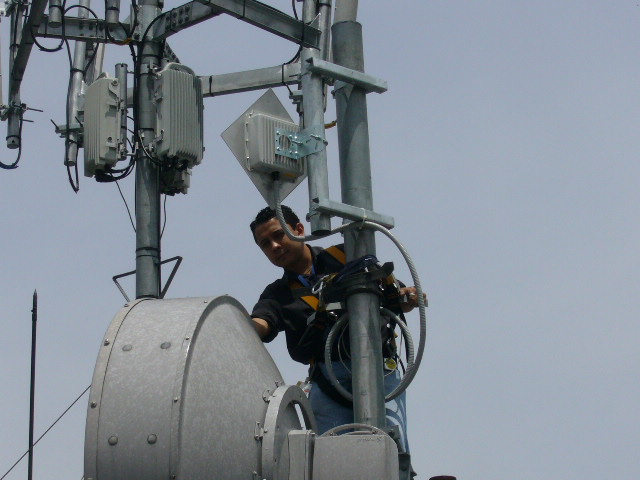

CableFree MIMO Radios installed in North Africa for Wireless ISP (WISP) application

CableFree Radios are typically easy to install, and are shipped with factory defaults ready to use, and “how to” Quick Start guides and detailed documentation.  Our expert team can assist with installation and configuration.

CableFree MIMO radios are widely deployed in many countries worldwide in mission-critical applications.

Radio Bands Supported by MIMO radios

CableFree MIMO radios support various bands as standard, and others with optional versions

  • 2312-2732 MHz  (2.3Ghz to 2.7GHz).  Includes 2.4GHz band
  • 4920-6100MHz (4.9GHz to 6.1GHz).  Includes 5GHz band
  • 3400-3800MHz (3.4GHz to 3.8GHz).  Includes 3.5GHz band
  • 5900-6400MHz (5.9GHz – 6.4GHz).    Above 5GHz band

Above Bands Include:

  • Unlicensed ISM band 2.4GHz,
  • Licensed 2.3GHz, 2.5GHz, 2.6GHz
  • 5GHz band 5.4GHz, 5.7GHz, 5.8GHz, U-NII bands.
  • Public safety band WLAN 4.9GHz.  50 MHz of spectrum from 4940 MHz to 4990 MHz
  • U-NII Low / U-NII-1 / U-NII Indoor 5.150–5.250 GHz
  • U-NII Mid / U-NII-2A 5.250–5.350 GHz
  • U-NII-2B 5.350–5.470 GHz
  • U-NII Worldwide / U-NII-2C / U-NII-2-Extended / U-NII-2e 5.470–5.725 GHz
  • U-NII Upper / U-NII-3 5.725-5.850 GHz
  • DSRC/ITS / U-NII-4 5.850–5.925 GHz
  • European standard EN 301 893 : 5.15–5.725 GHz

CableFree MIMO OFDM Radio Antennas

High quality antennas designed for use with CableFree radios including the latest AC-MIMO products in the 4.9-6.1GHz unlicensed and licensed bands

Please Click Here to visit the CableFree MIMO Antennas page for further details

CableFree 3.5GHz MIMO Radios

CableFree offers a complete range of radios for 3.5GHz including 3.3GHz to 3.8GHz licensed radio bands

CableFree 10.5GHz MIMO Radios

CableFree offers a complete range of radios for 10.5GHz licensed radio bands

Accessories for CableFree Radios

Please use Surge Suppression when installing CableFree Radios where appropriate.  Both Ethernet (POE) and RF (0-6GHz, with DC passthrough) Surge Arresters are available for various different types of installations.  Always ensure safety of personnel as well as equipment when installing CableFree Wireless solutions.  If in doubt, consult a qualified electrician.

Designing Radio Networks using Cablefree

For further information on designing radio networks using the range of CableFree wireless networking products please Contact Us

Technology Overview

We have many white papers and pages on Radio Technology to guide and assist users.  Some of the most popular ones are listed here:
